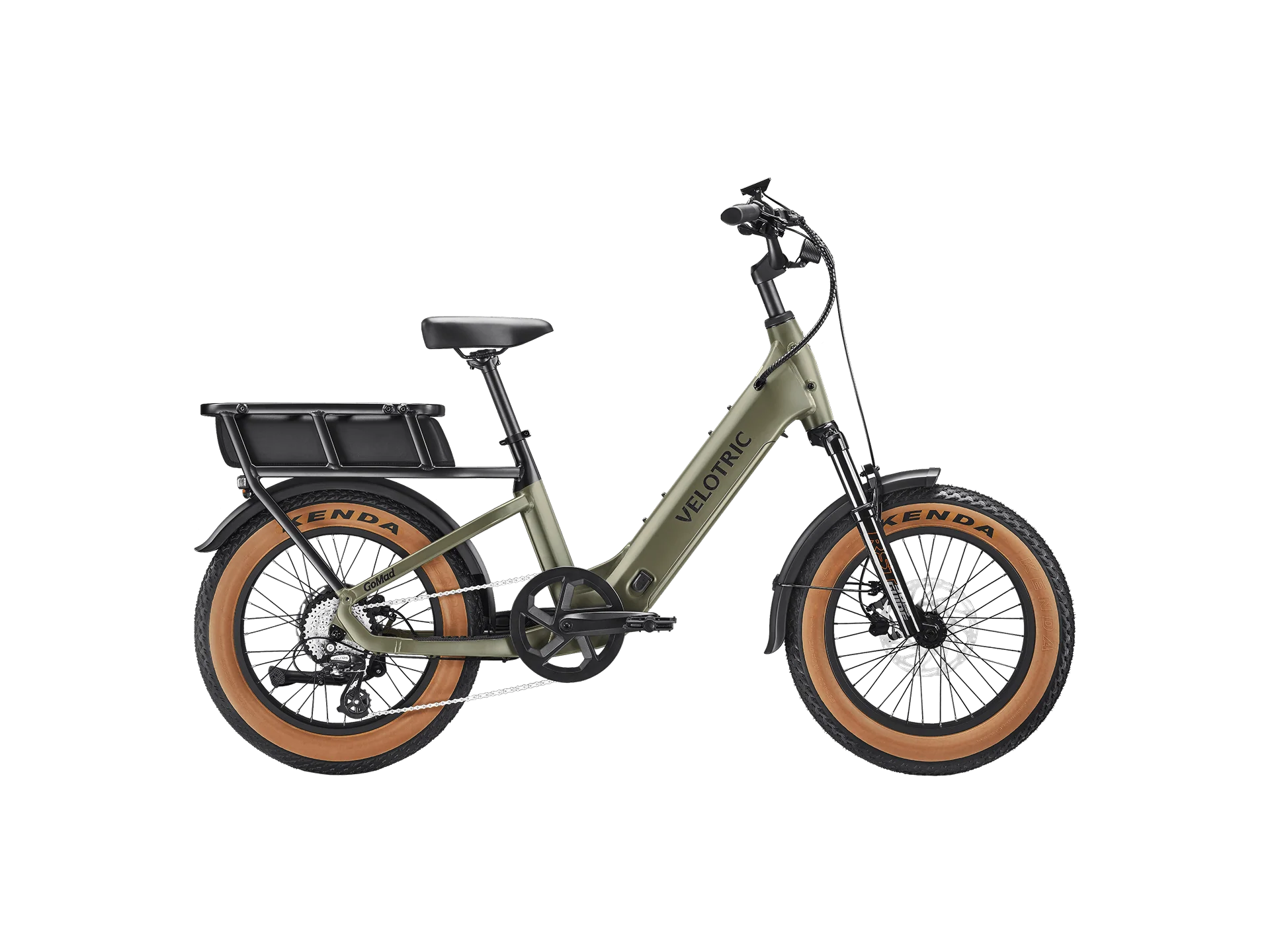

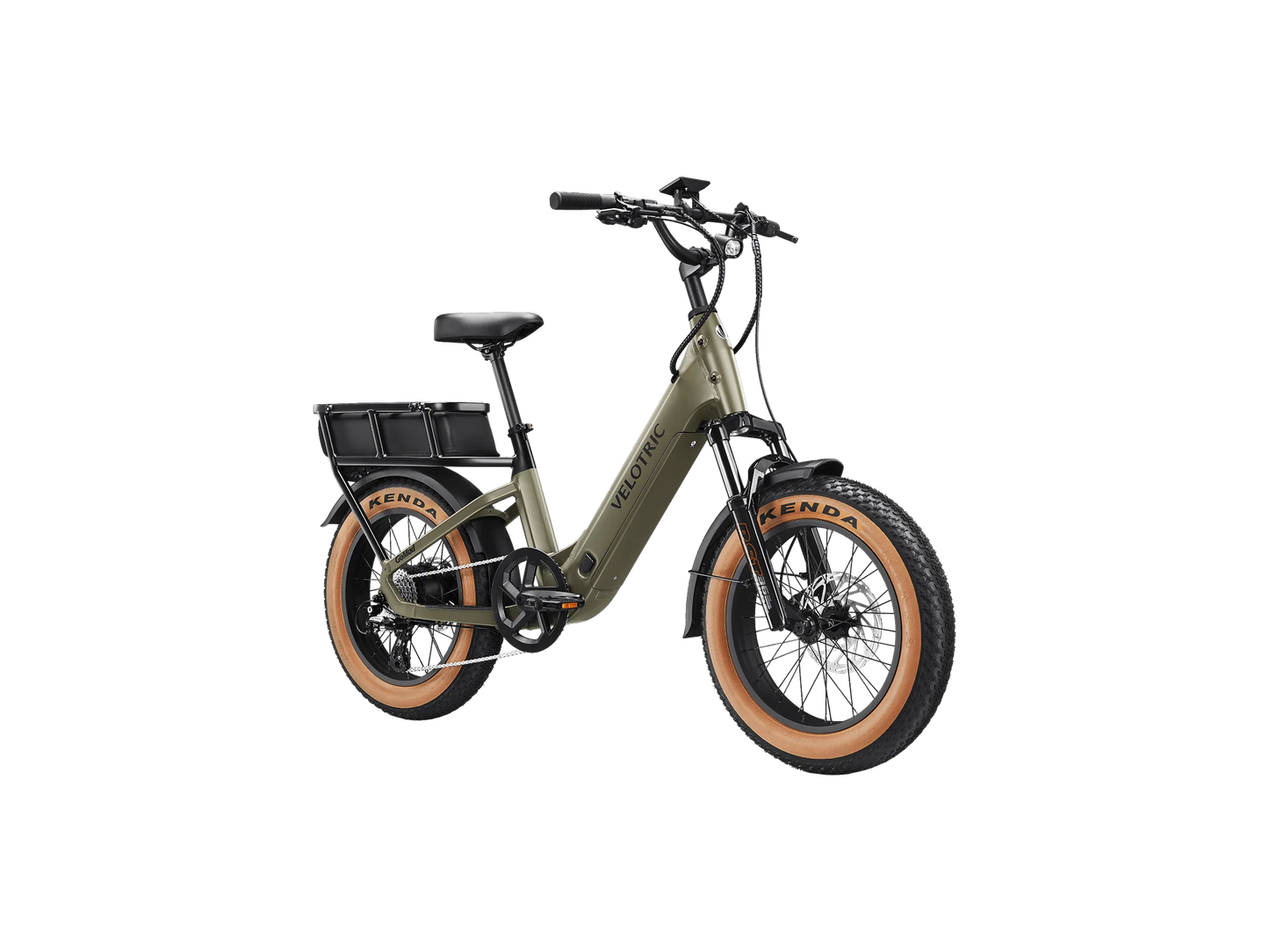

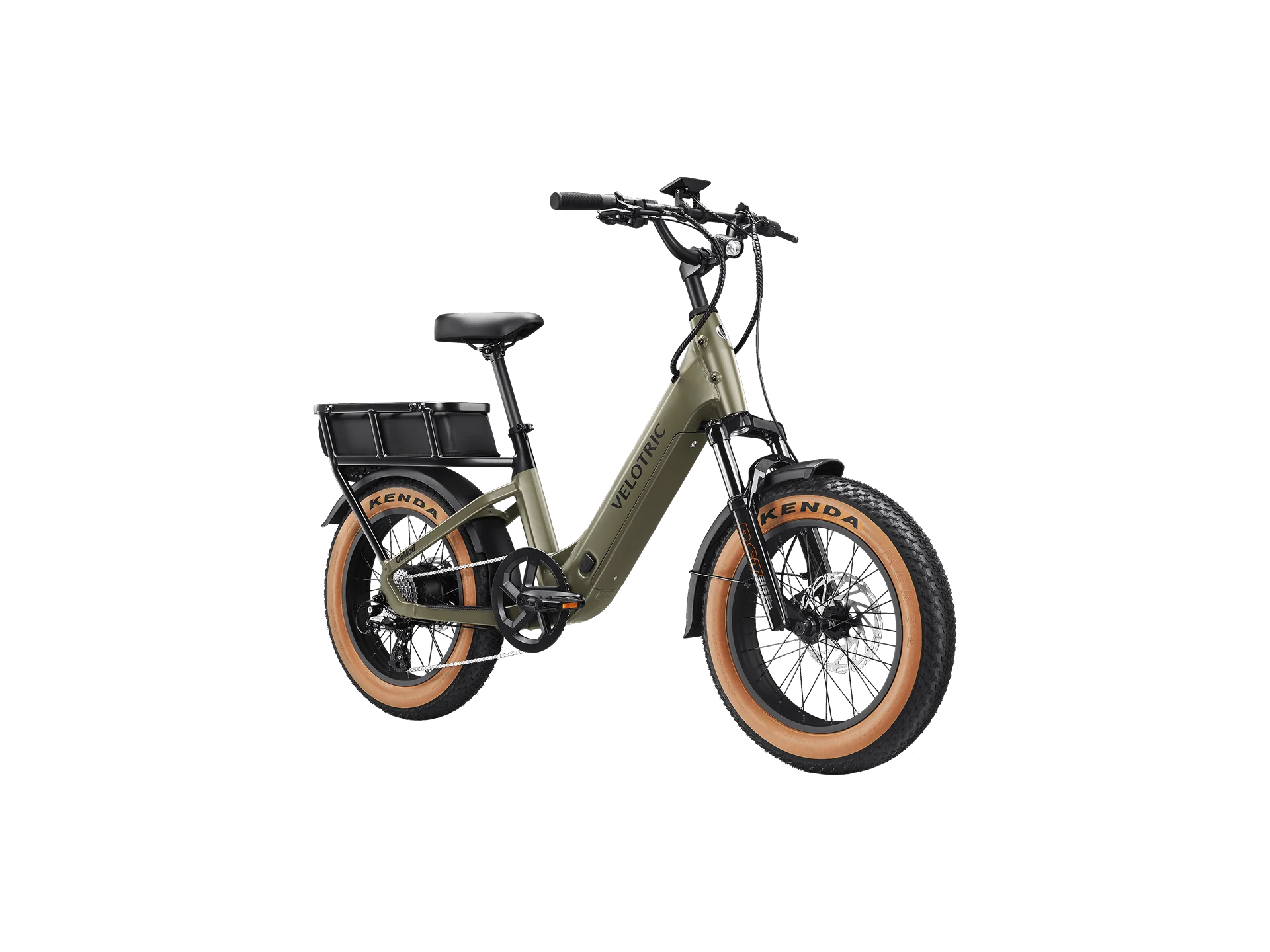

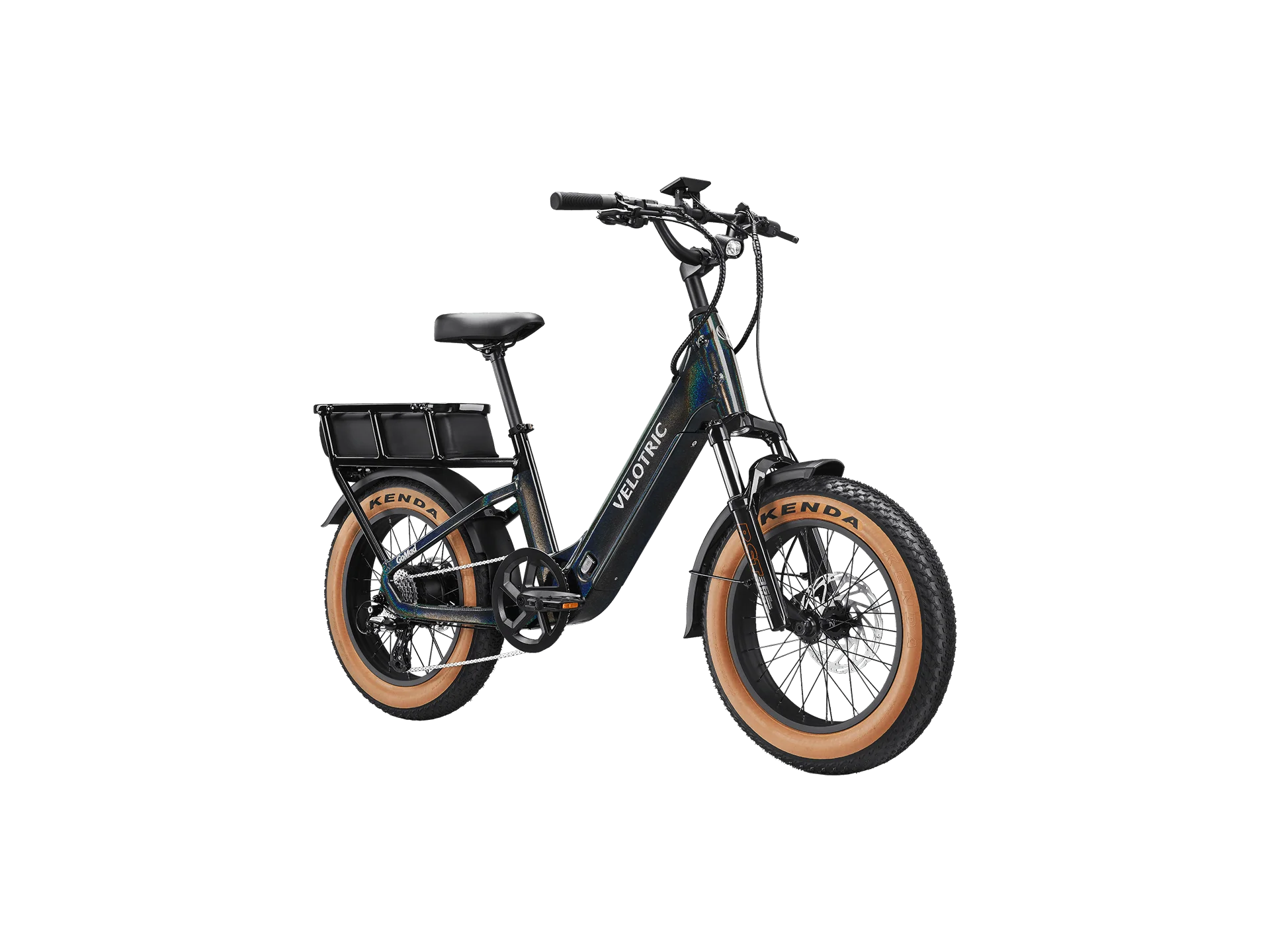

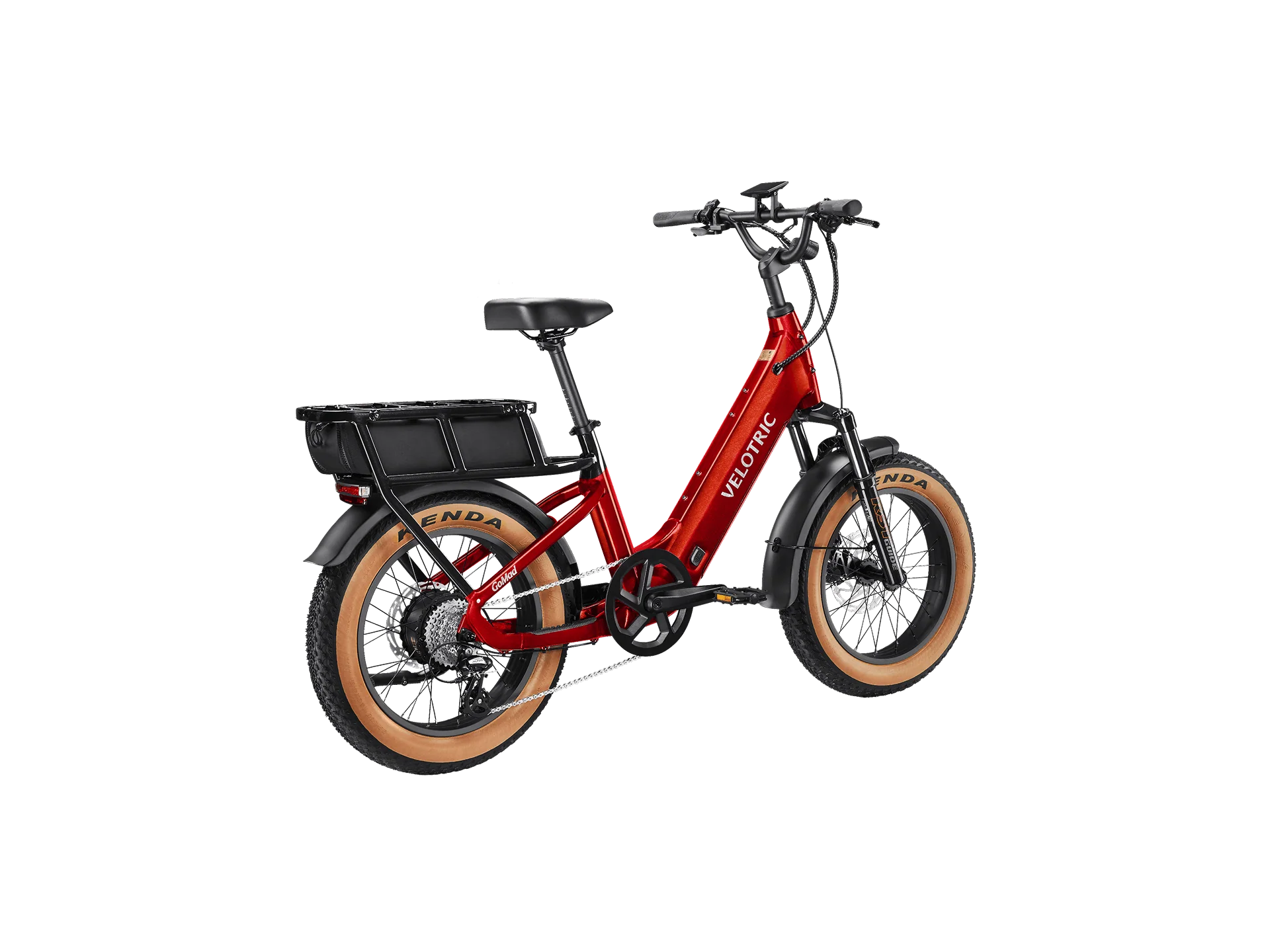

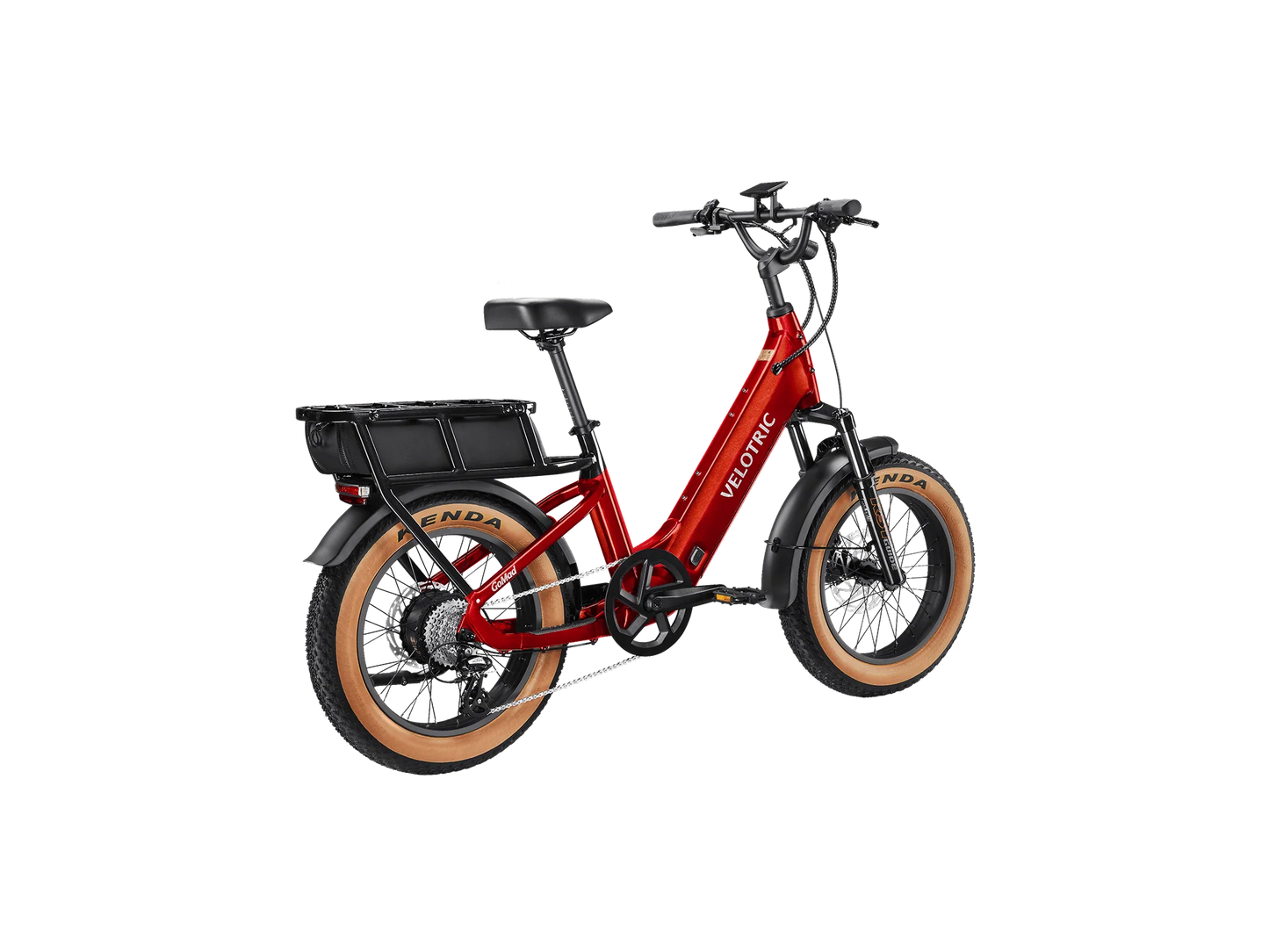

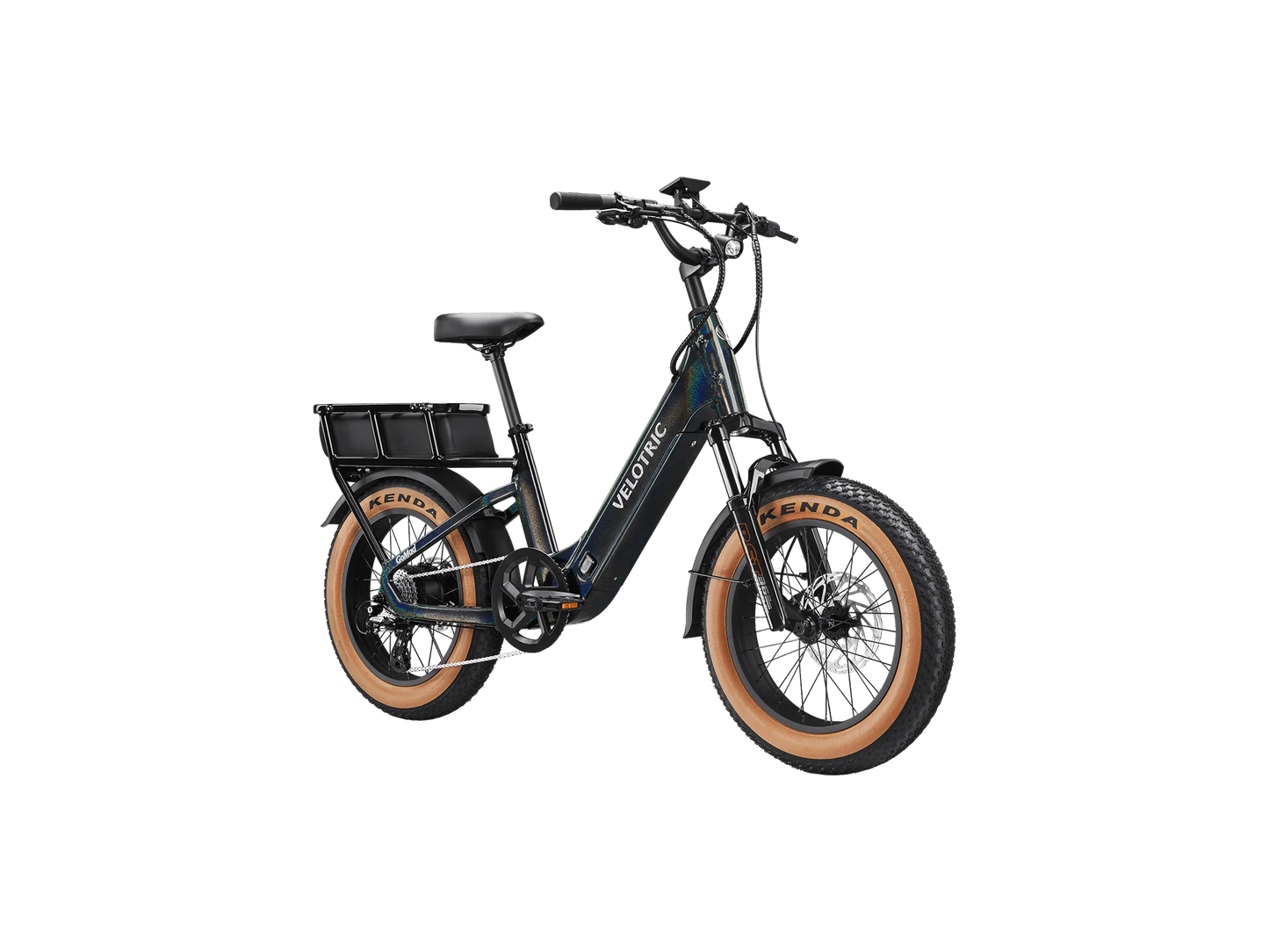

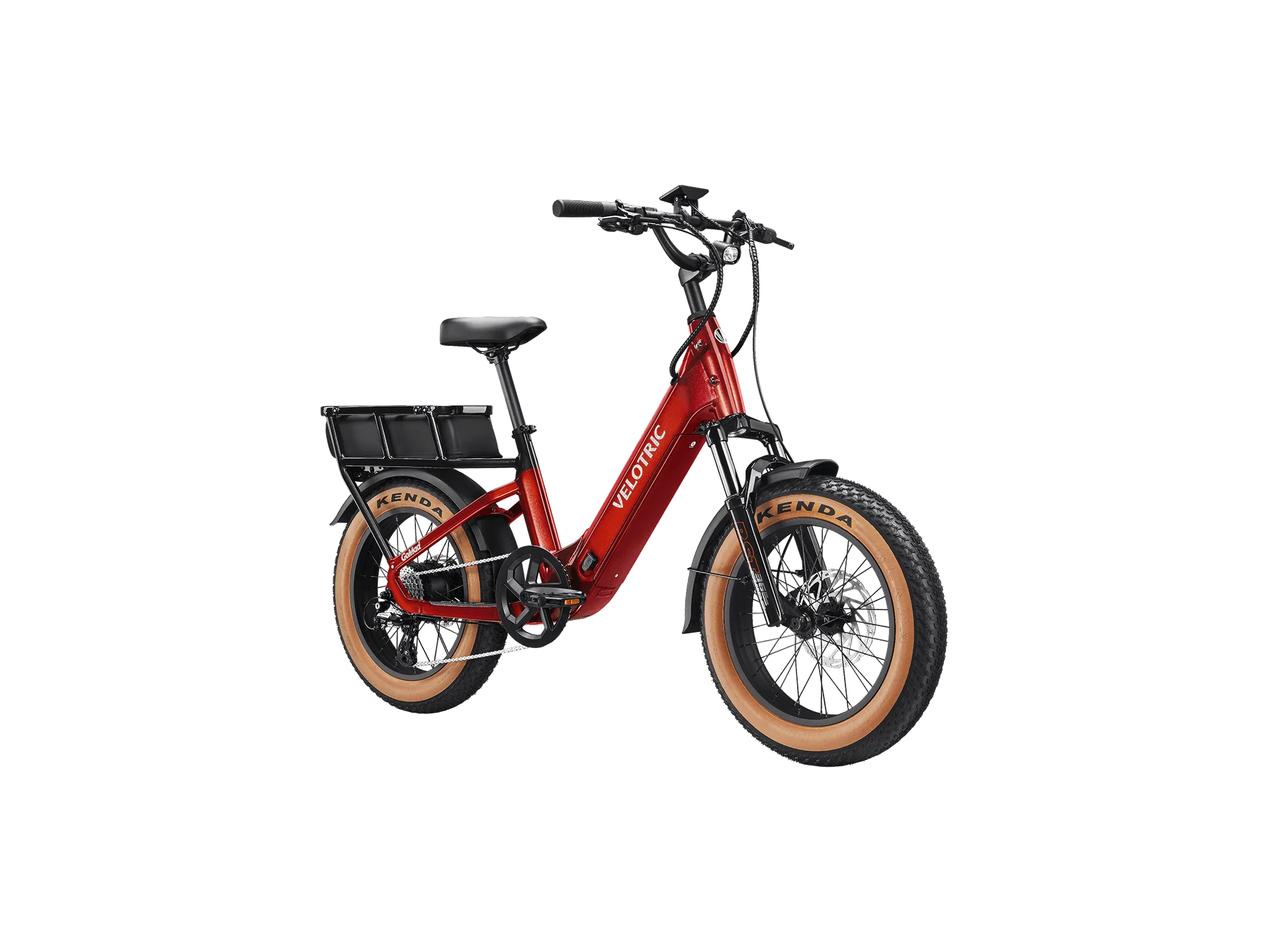

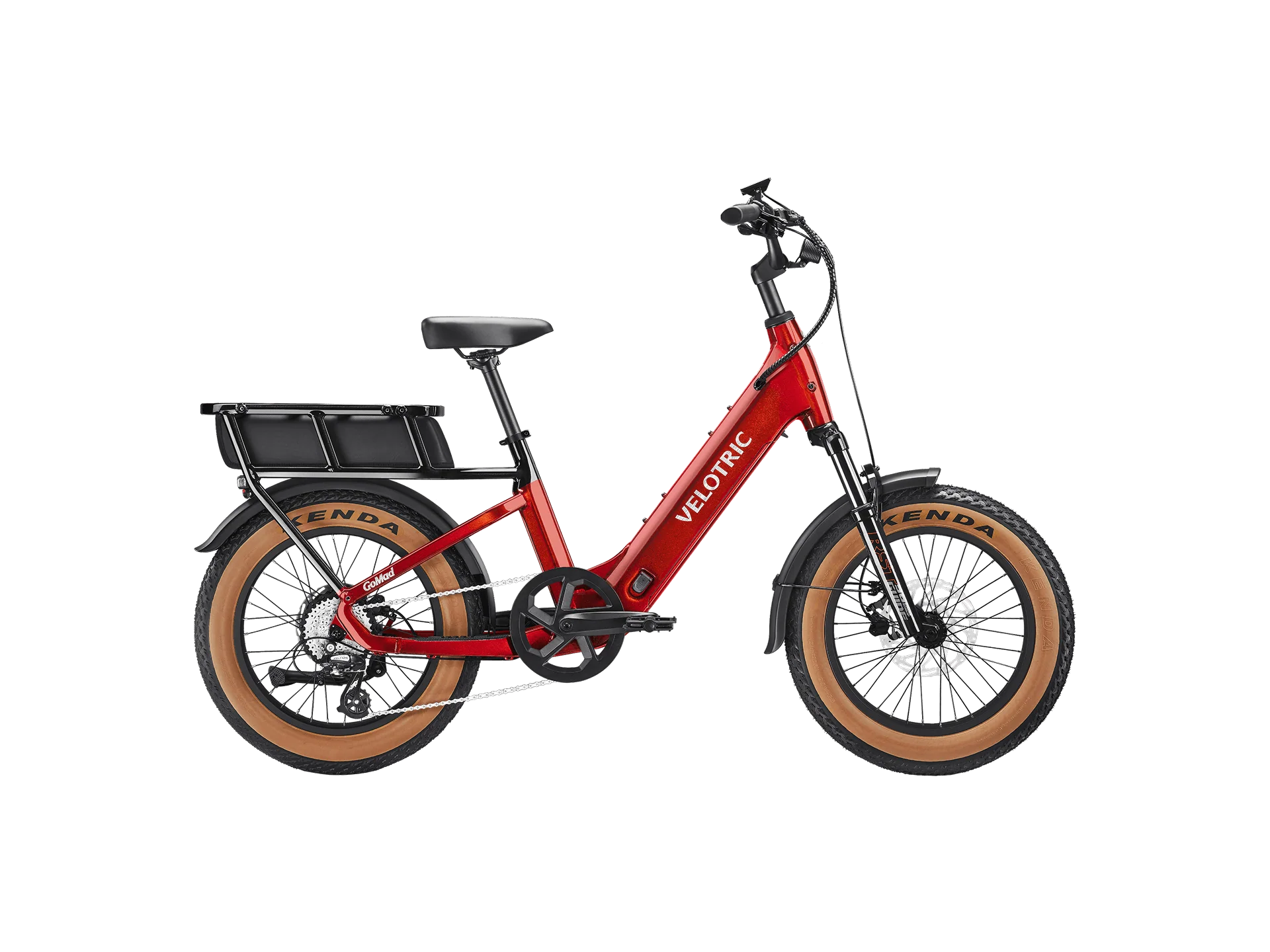

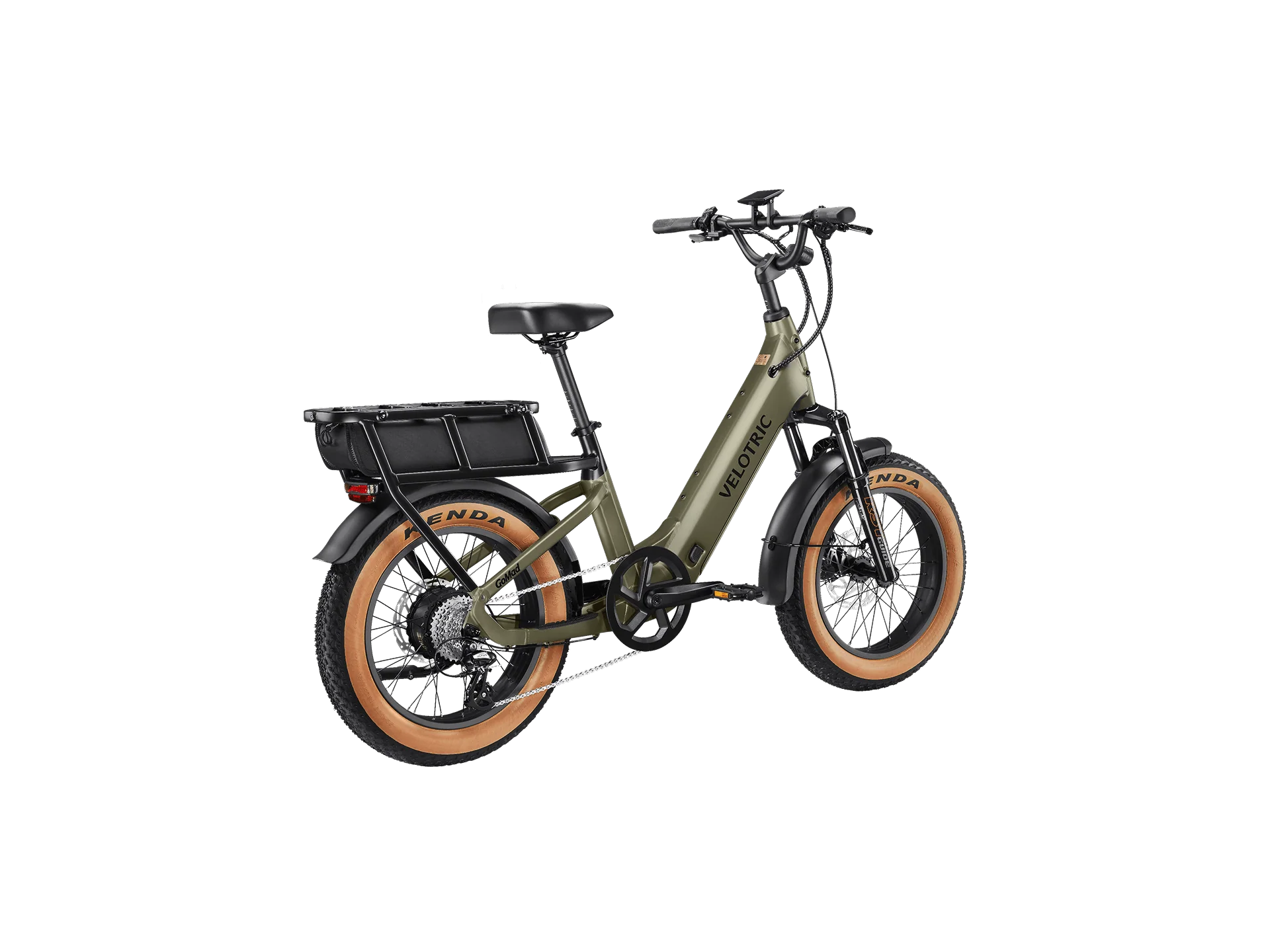

Velotric GoMad Ebike

Velotric GoMad Ebike

$1,999.00 USD
$1,999.00 USD
Sale Sold out
Shipping calculated at checkout.
Color

Velotric GoMad Ebike



IPX6-Rated Whole Bike IPX7-Rated Battery
Apple Find My & Google's Find Hub
3.5" LCD Display
Integrated Rear Light & 500-Lux Front Light
NFC Keyless Access
Specifications
SIZE GUIDE
Bike Size

One Size

User Height Range

5'0'' ~ 6'3''


FRAMESET
Frame

Triple-Butted Aluminum Alloy

Fork

RST Hydraulic Suspension 100mm Travel with Lock-out, 36mm Inner Tube


ELECTRONICS
Motor

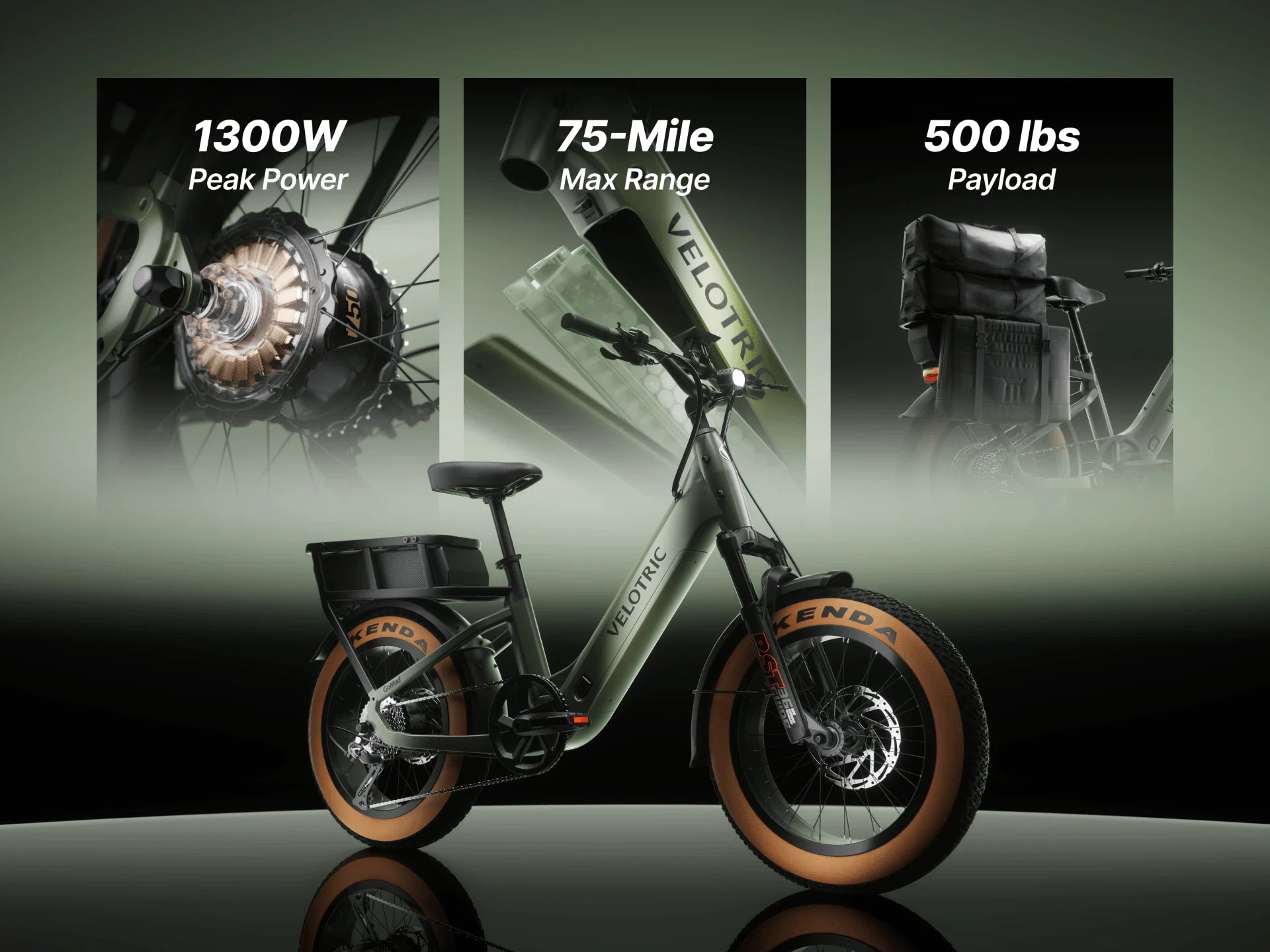

48V, 750W, (1300W Peak Power), 85Nm

Battery

48V, 16.7Ah (801.6Wh), IPX7, Certificated by UL2271

Cell

Samsung/LG 21700 cell, Certificated by UL2580

Charger

48V, 3A Fast Charger

Sensor

Torque and Cadence Sensor

Display

3.5" Full Color, High Brightness, Bluetooth, NFC, Adjustable Angle

USB Port

USB Type-C phone Charge

Throttle

Trigger-control, Removable

Pedal Assist

5 Riding Modes+Stealth Mode /Ride Tuning

Walk Mode

2.9MPH/ Walk & Hold

Front Light

500LM High-output Integrated LED, Adjustable Angle

Rear Light

Braking Indicator, Turn Signal, Rear Light Steady/Flash, Integrated with Rear Rack

Water Resistant

IPX6

App

App OTA

Anti-theft

Apple Find My & Google's Find Hub，NFC Card Unlock


SPEED & RANGE
Max Speed (Default）

20MPH

Max Speed Adjustable Range

12~28MPH

Ebike Class

1/2/3

Pedal Assist Range

75 Miles

Throttle Range

50 Miles


DRIVETRAIN
Chainrings

52T Narrow-Wide Chainring

Crankset

Aluminum Alloy, 165mm

Freewheel

8-speed,11-34T

Rear Derailleur

SHIMANO 8-speed

Shift Lever

SHIMANO 8-speed

Chain

KMC 8-speed


BRAKE
Brake

Tektro Hydraulic Disc Brake

Rotors

203mm Front/180mm Rear

Brake Levers

Aluminum Alloy, with Power Cutoff


WHEEL
Rims

Aluminum Alloy

Front Hub

NOVATEC Aluminum Alloy, 15x135mm Thru-axle

Tire

KENDA 20x4.0" eBike Puncture Resistant Tires


COCKPIT
Handlebar

BMX Style, 31.8mm Bar Clamp, 700mm

Grips

Durable Ergonomic Grips, Lockable

Stem

Quill Stem, 31.8mm Clamp, 30mm Length, 140mm Vertical Adjustment Range

Saddle

VELOTRIC Comfort Ergonomic Seat

Seatpost

Aluminum Alloy, Ф30.9mm

Clamp

Aluminum Alloy, Quick Release


SUPPORTS
Fenders

Plastic, Front and Rear Full Coverage

Rear Rack

MIK HD Compatible，Integrated with Frame

Pedals

Plastic

Kickstand

Aluminum Alloy, Included, Rear Mount

Rear Rack Bag

Included as Standard Equipment


WEIGHT & LOAD
Bike Weight

77 lbs

Bike Weight (Without Battery)

67 lbs

Rear Rack Load Capacity

176 lbs

Max Bike Load Capacity

500 lbs


CERTIFICATION
UL Certification

UL2849 & UL2271

ISO Standard

ISO 4210

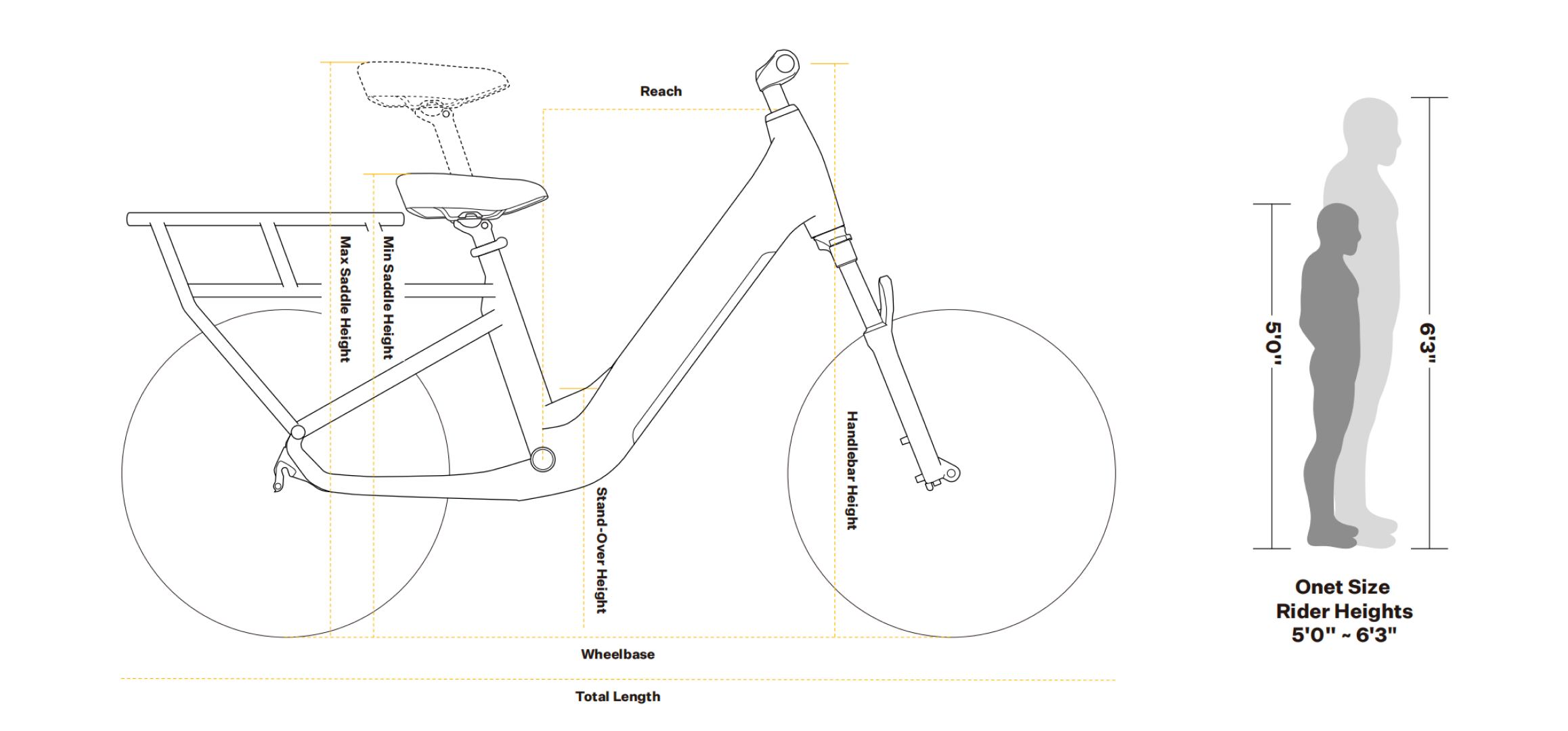

Geometry
GoMad-Step_FTD_PC
Height

5'0" – 6'3"

Reach

420mm

Handlebar Height

1040-1180mm

Wheelbase

1171mm

Stand-Over Height

500mm

Min Saddle Height

720mm

Max Saddle Height

930mm

Total Length

1811mm
