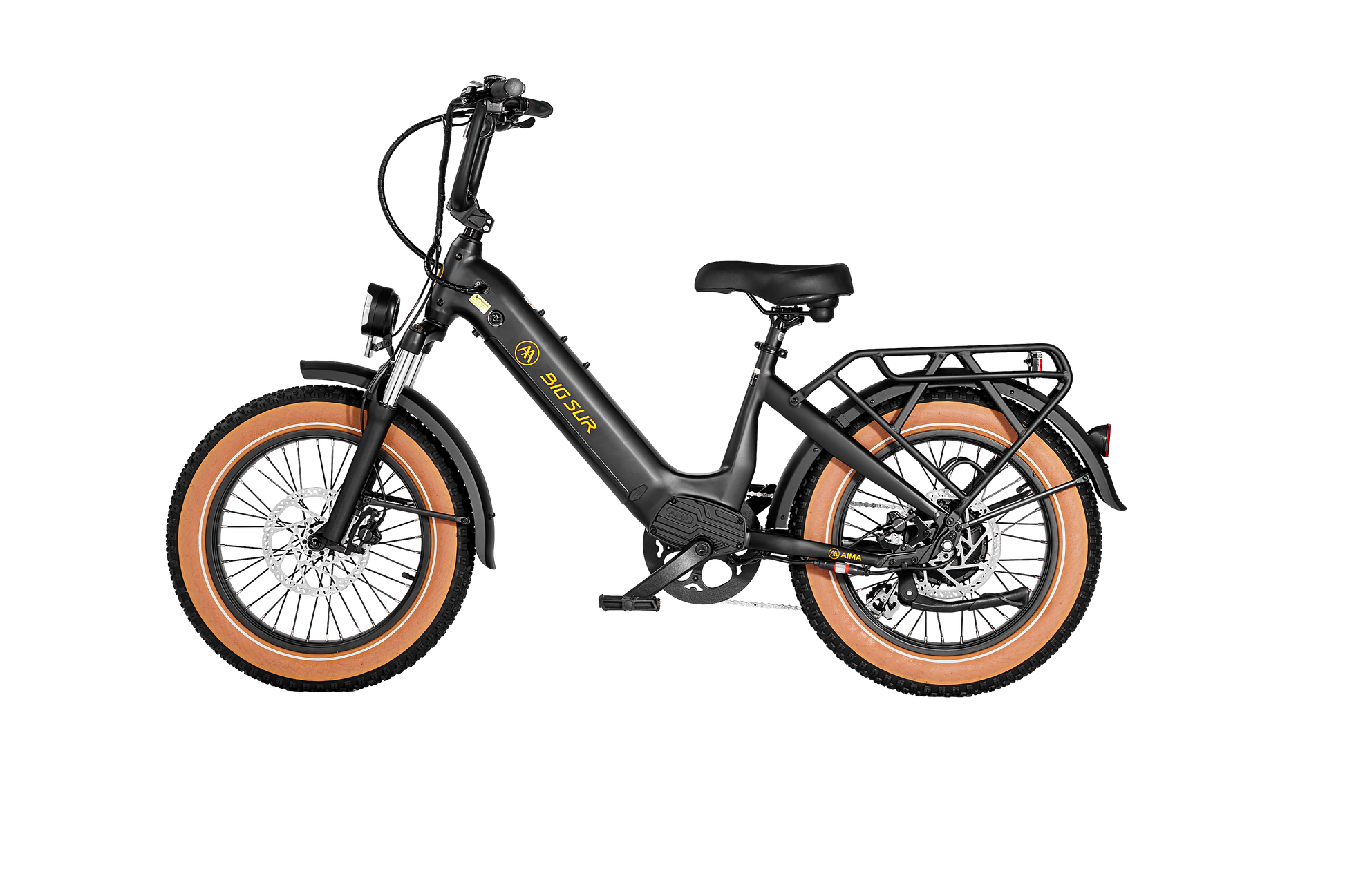

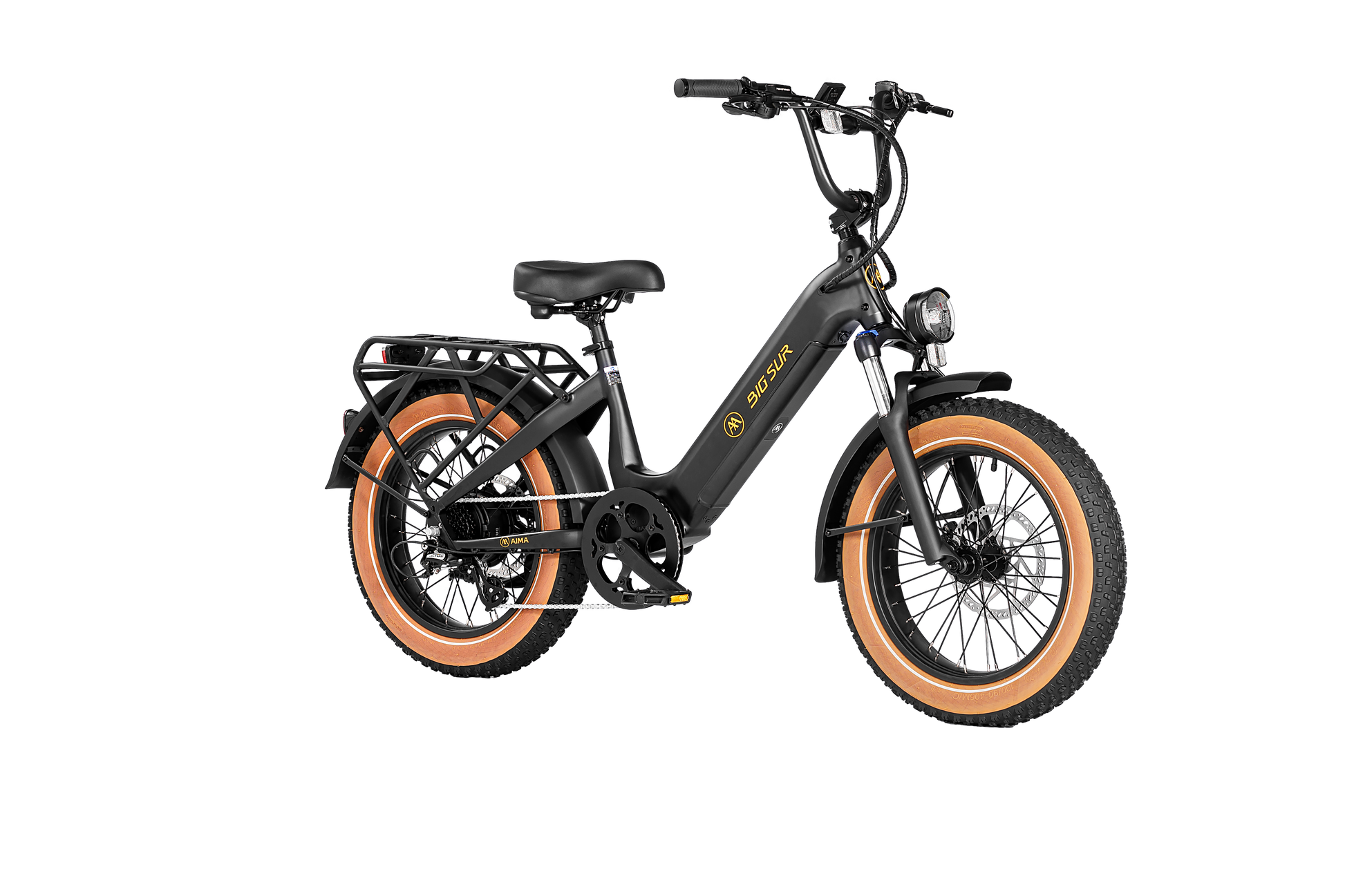

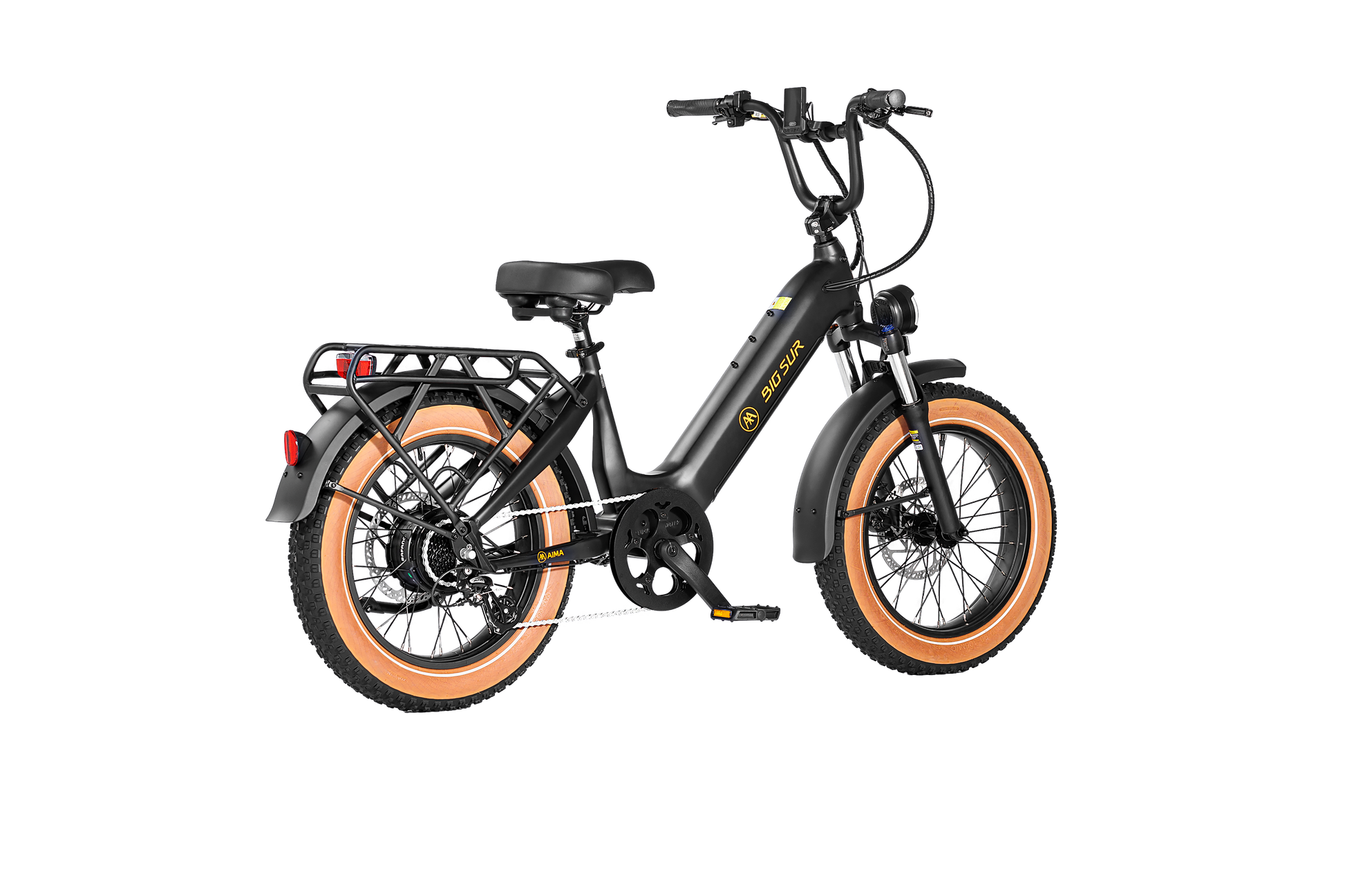

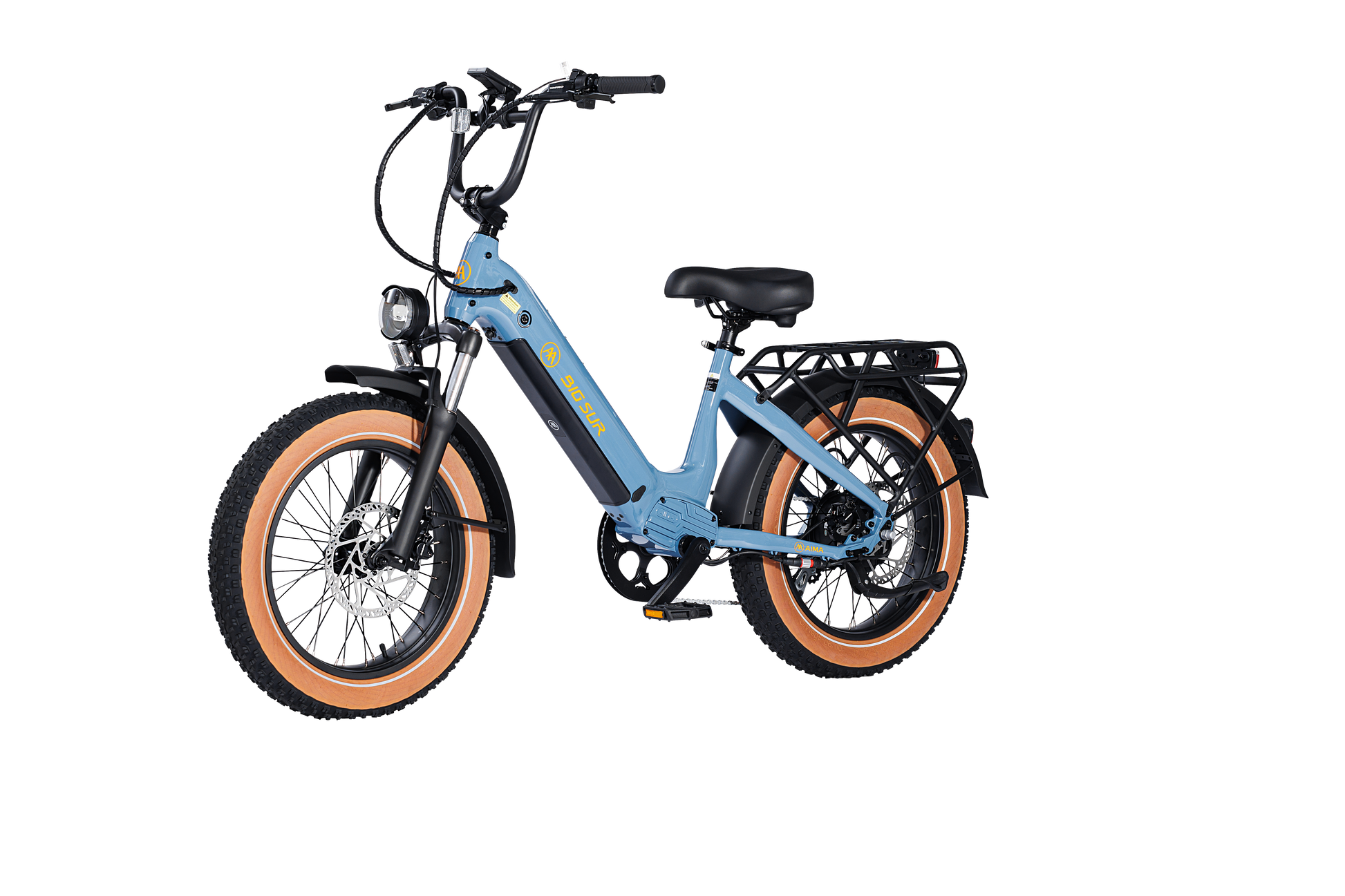

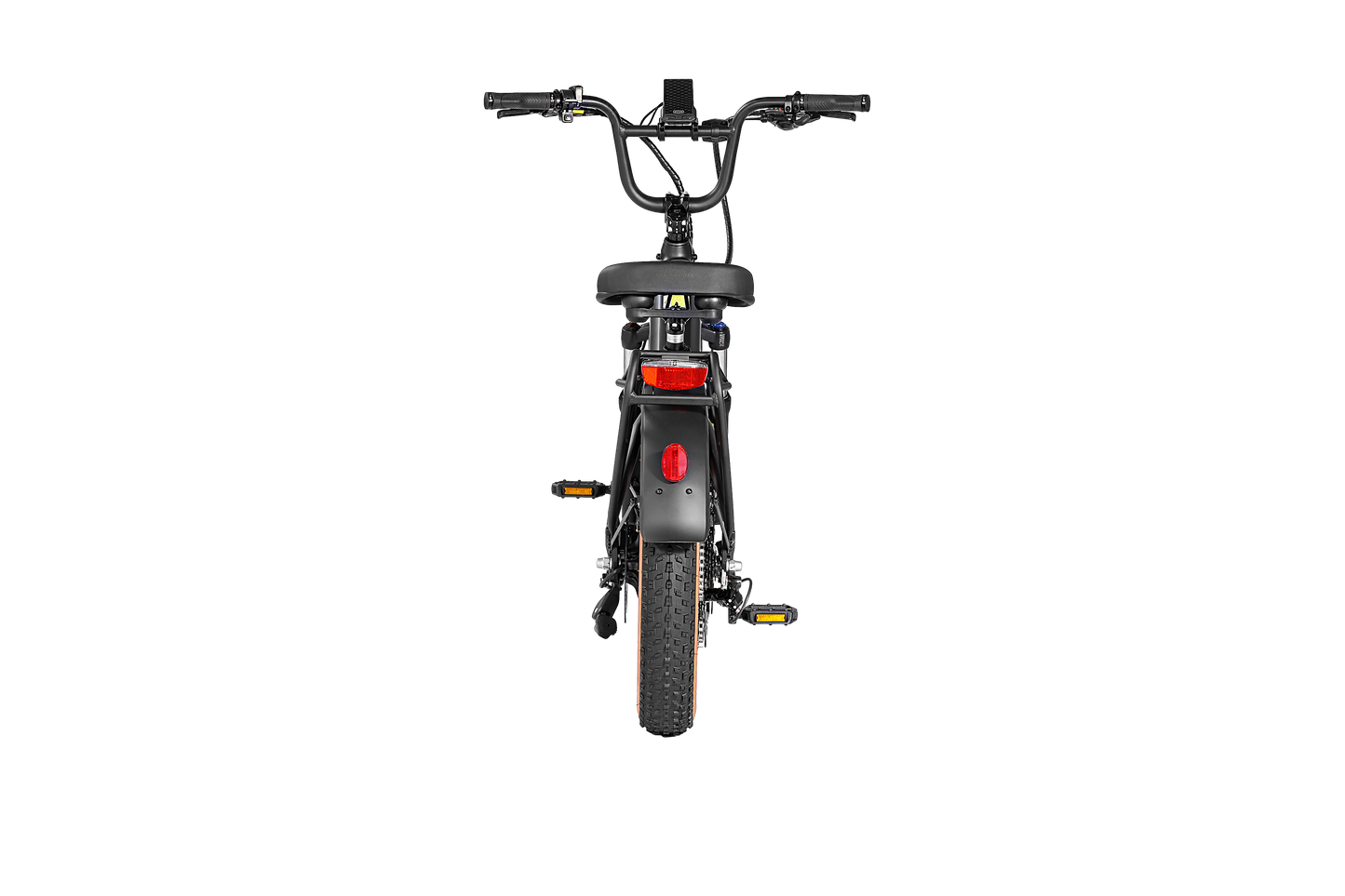

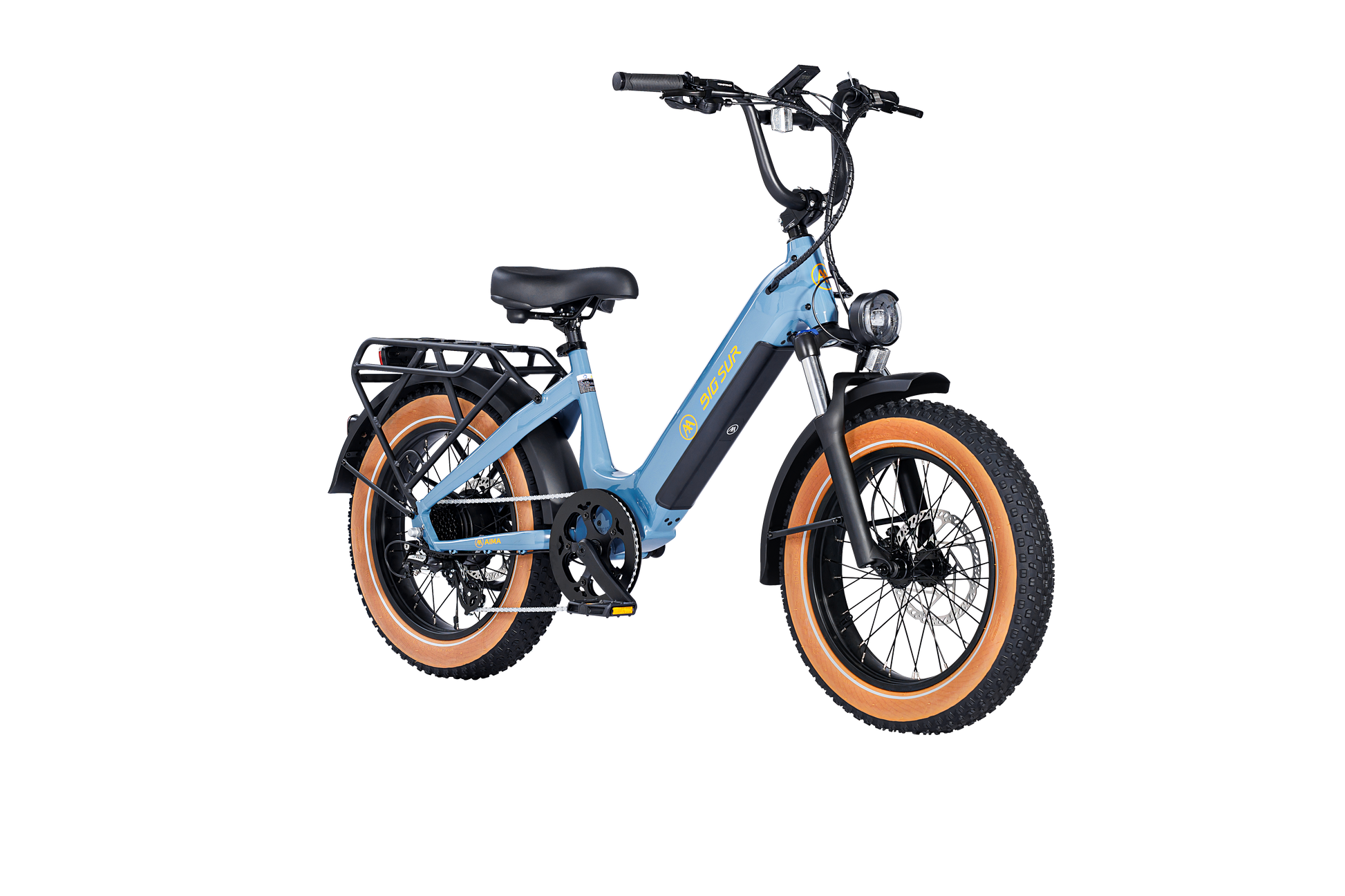

Big Sur Sport 20" Ebike
Everything you love about the original Big Sur is back! Now sporting 20" x 4" fat tires, Big Sur Sport is smaller and lighter, but it's just as fun and performant as Big Sur 26", if not more so! This bike retains the original's class 2/3 rating (20mph and 28mph top speed using the throttle and PAS respectively), as well as its safety features, including big 203mm brake rotors, LG 21700 battery cells, and a full UL2849 certification. Equipped standard with the AIMA Comfort XL seat and an MIK rear rack, Big Sur Sport delivers the same level of power, comfort, and smoothness of its bigger brother.
MODEL
Big Sur Sport
MOTOR
750W (Rated), 48V Brushless Rear Hub Motor
THROTTLE
Throttle on Demand
DISPLAY
Color LCD, Smart Easy-to-Read Display with Backlight
SPEED
Up to 28 MPH Pedal Assist, 20 MPH Throttle Only
BATTERY
Removable Internal Lithium-ion 48V, 15Ah (720Wh) with LG M50LT 21700 cells
REAR RACK
MIK HD
SENSORS
Torque Sensor
PEDAL ASSIST
5 Levels
CHARGER
48V 3 Amp Fast Charger, about 5 Hours to a Full Charge
RANGE
Up to 60 Miles

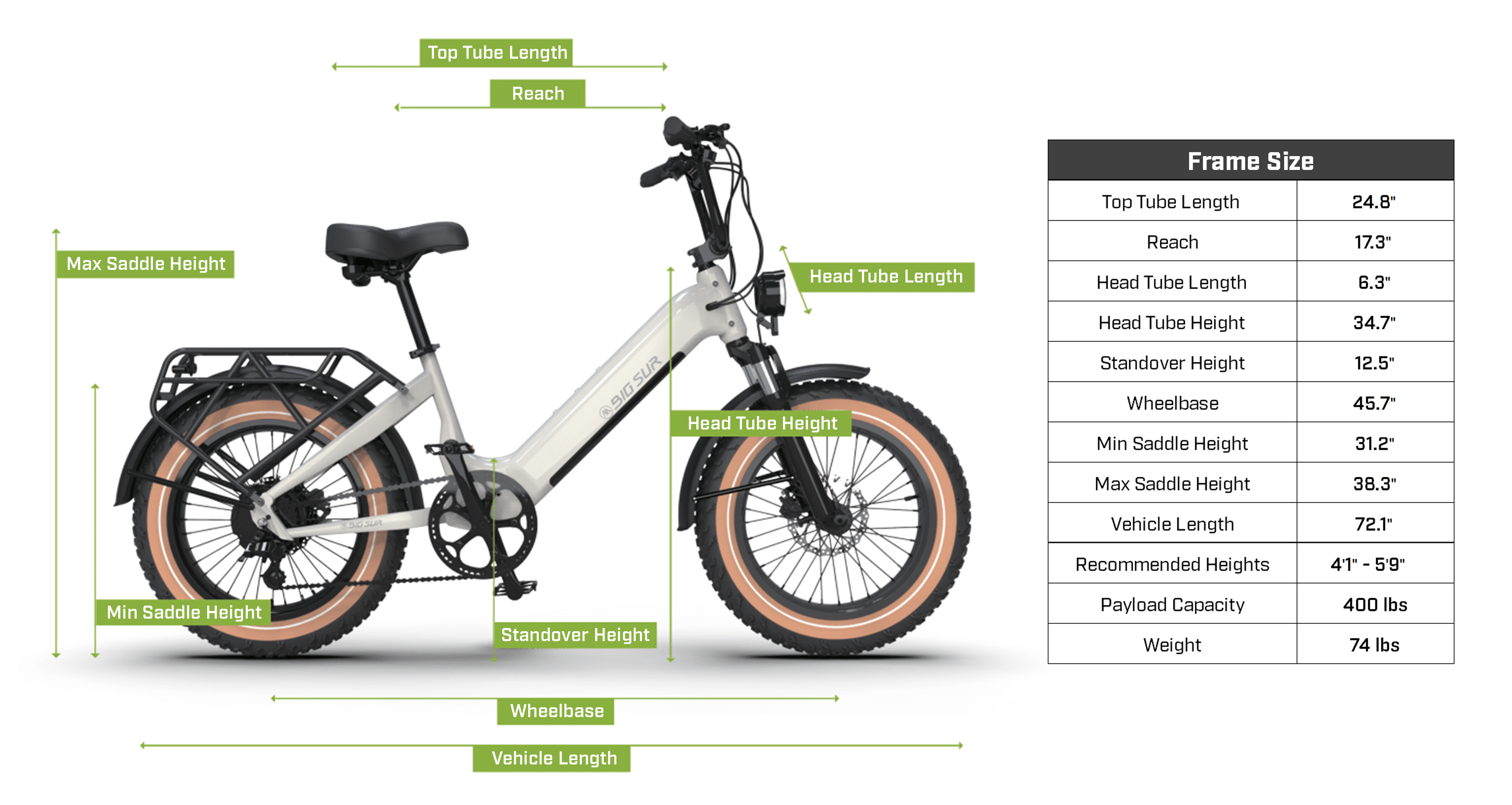

FRAME
6061 Single-Butted Aluminum Alloy Frame with Internal Battery
WEIGHT
74 lbs. (Battery included)
PEDALS
9/16' Alloy Platform
FORK
Suspension Fork with 80mm Travel, Adjustable Preload & Lockout
WEIGHT LIMIT
400 lbs.
KICKSTAND
Included, Aluminum Alloy Kickstand
CRANKSET
160mm w/ 52T
SHIFT
Shimano 7 Speed
BRAKES
Tektro E350 Hydraulic Disc Brakes
ROTOR
203 mm
CHAIN
130 Link, 8 Speed
RIM
Double Wall Aluminum Alloy
SPOKES
Black Stainless 12G Front / 12G Rear
TUBES
Butyl Rubber
HUBS
Front Aluminum Alloy Disc Hub
TIRES
20" x 4" Puncture Resistant
SADDLE
AIMA Comfort, 280mm*270mm Saddle
SEATPOST
Aluminum Alloy, 30.4mm 2-Bolt Clamp
STEM
Threadless, 31.8mm, 7 Degree Rise, Ext 75mm
SEAT CLAMP
34.9 mm Quick Release
HANDLEBARS
Aluminum Alloy Double Wall, 31.8mm, 680mm
HEADSET
Sealed Bearing Headset
GRIPS
Ergonomic Comfort
Hub Motor and Battery
There's few places you can't go with Big Sur Sport, thanks to its powerful 750W (nominal) rear hub motor by Bafang paired with a 48V 15Ah high-capacity battery.
Torque Sensor
Rather than relying on an outdated cadence sensor to detect your movement, our torque sensor is able to instantly feel how hard you're pedaling at any given time and instruct the motor to match your performance, improving safety and efficiency.
Full Color Backlit LCD Display
Everything you need is right in front of you at all times, including your current speed, battery remaining, distance traveled, and much more.
20” x 4” Fat Tires
20” x 4’’ tires enable you to traverse any terrain with ease while retaining the nimble feeling of a 20" tire. It's the best of both worlds!
Suspension Fork
Offering 80mm of travel and adjustable preload & lockout functionality, our suspension fork provides a smooth and comfortable ride feel throughout a wide variety of riding conditions.
Fender & Rear Rack
Fenders come pre-installed to ensure you'll be able to tackle all sorts of weather conditions. Plus, an included MIK HD rear rack means there's no limit to what you can take with you.
Flat Position Welding
We've applied one of the most advanced aluminum welding processes to our frame, an exclusive "flat position welding" technique. This allows the frame to maintain its strength and rigidity while also appearing smooth and flat.
Walk Assist
Gone are the days of pushing your bike around by hand. Our walk assist function allows the bike to maintain ~2-3mph (walking speed) as you push it alongside you, up a hill, or anywhere else.
Controller Compartment
Mid-drive? Not quite! Our mid-mounted controller cavity allows for streamlined assembly and repair, while also bolstering the controller's heat dissipation capabilities, improving the bike's performance and safety.
