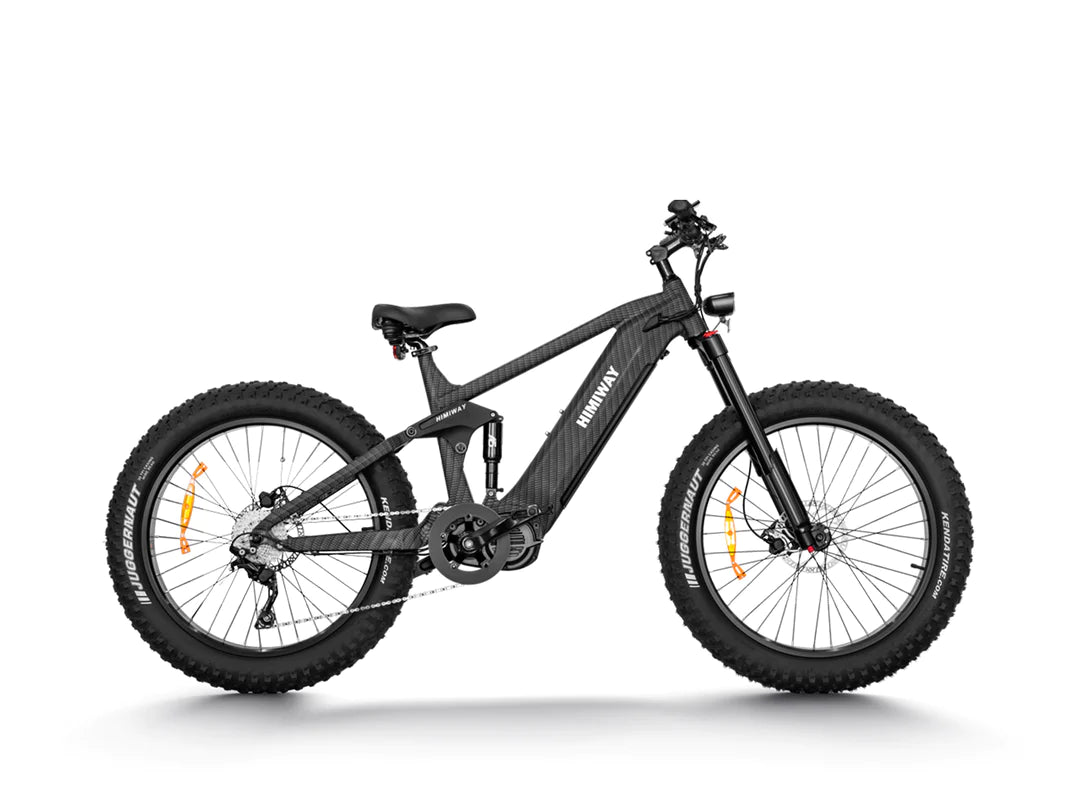

Himiway Cobra Pro is tailor-made for off-road enthusiasts. It is equipped with the Bafang mid-drive motor, which is considered one of the leading manufacturers of electronic drive systems. A 1300W of peak motor power will lead you conquer the roughest venture. A four-bar link suspension system with a four-sided polygon design promotes superior vibration absorption. As the first middle-class e-bike on the U.S. market with four-bar linkage suspension, Himiway Cobra Pro keeps you safe and give you the best riding experience on your toughest exploration.
Specifications
•Battery 48V 20Ah Samsung/LG lithium battery
•Range 60–80 miles
•Motor 1000W mid-drive motor
•Total Payload Capacity 400 lb.
•Recommended Rider Heights 5′4″ ~ 6′4″
•Charger US standard 3.0 A smart charger
•Controller 48V/30A
•Display LCD display with USB charging
•Weight 88 lb.
•Pedal Assist Intelligent 0~5 level pedal assist
Components
•Tires 26″ x 4.8″ CST fat tires
•Brake lever Aluminum alloy comfort grip levers with motor cutoff switch
•Rear Light Battery powered bike light
•Freewheel Shimano 10 speed gear shift system
•Brake Tektro 180mm hydraulic brakes
•Chain KMC 10-SPEED STEEL SILVER Chains
•Stem MA-400 28.6*90*31.8MM
•Crank 44T*170MM 4-jaw L/R forged alloy
•Gearing Shimano 11-34T BROWN/BK
•Front Fork Alloy air front suspension fork with oil pressure lockout
•Throttle Thumb throttle
•Pedal Alloy pedal with reflectors
•Bike Frame 6061 Aluminum frame
•Front Light 48V LED light
•Saddle SR saddle
•Seat Post 30.9*350mm Alloy Seatpost
•Kickstand Heavy-duty aluminum
•Spokes 13 Guage-255
Geometry
•A -- Total Length 82.6
•B -- Handlebar Height 42.9
•C -- Wheelbase 51.1
•D -- Minimum Seat Height 30.3
•E -- Maximum Seat Height 37
•F -- Chain Stay Length 19.7
•G -- Standover Height 32
•H -- Top Tube Length 24
•I -- Wheel Diameter 30.3
•J -- Head Tube Length 5.1
K -- Handlebar Length 27.6
