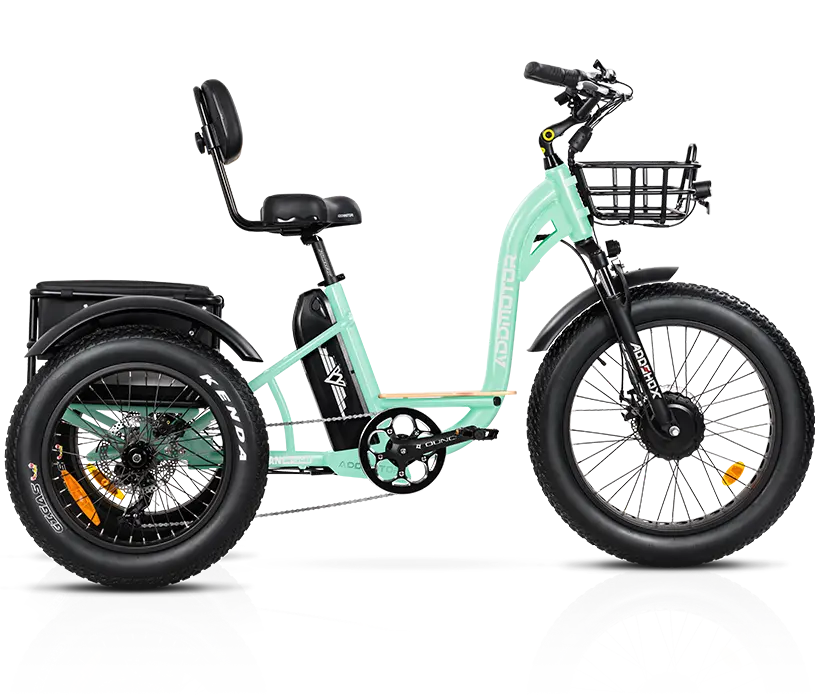

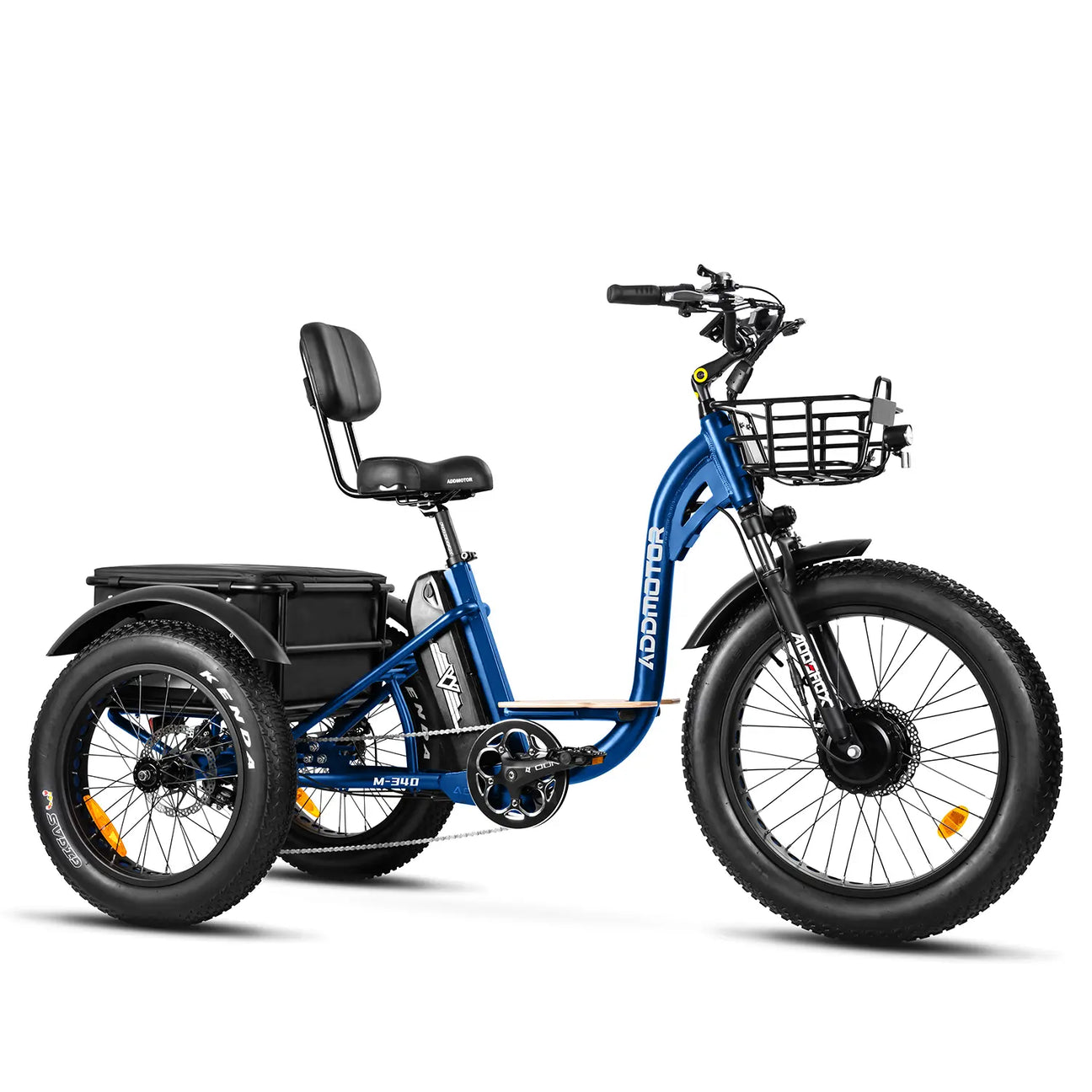

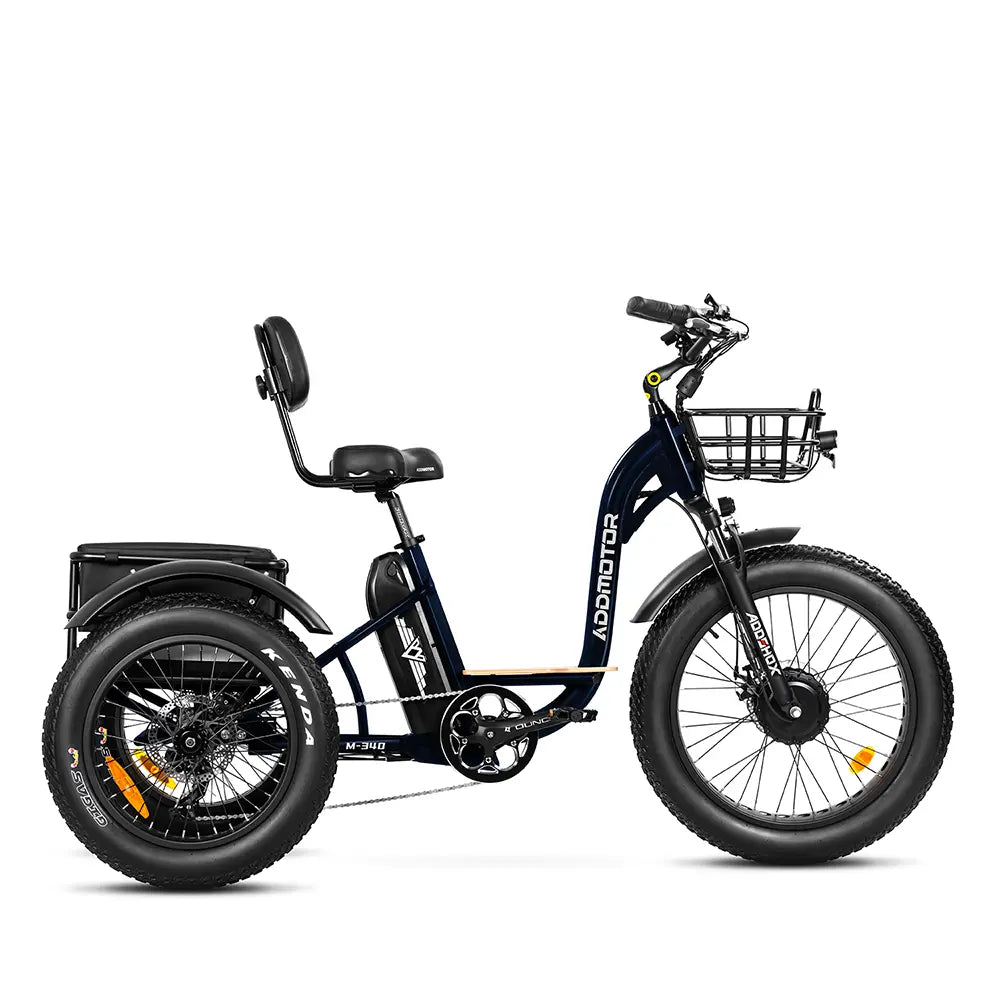

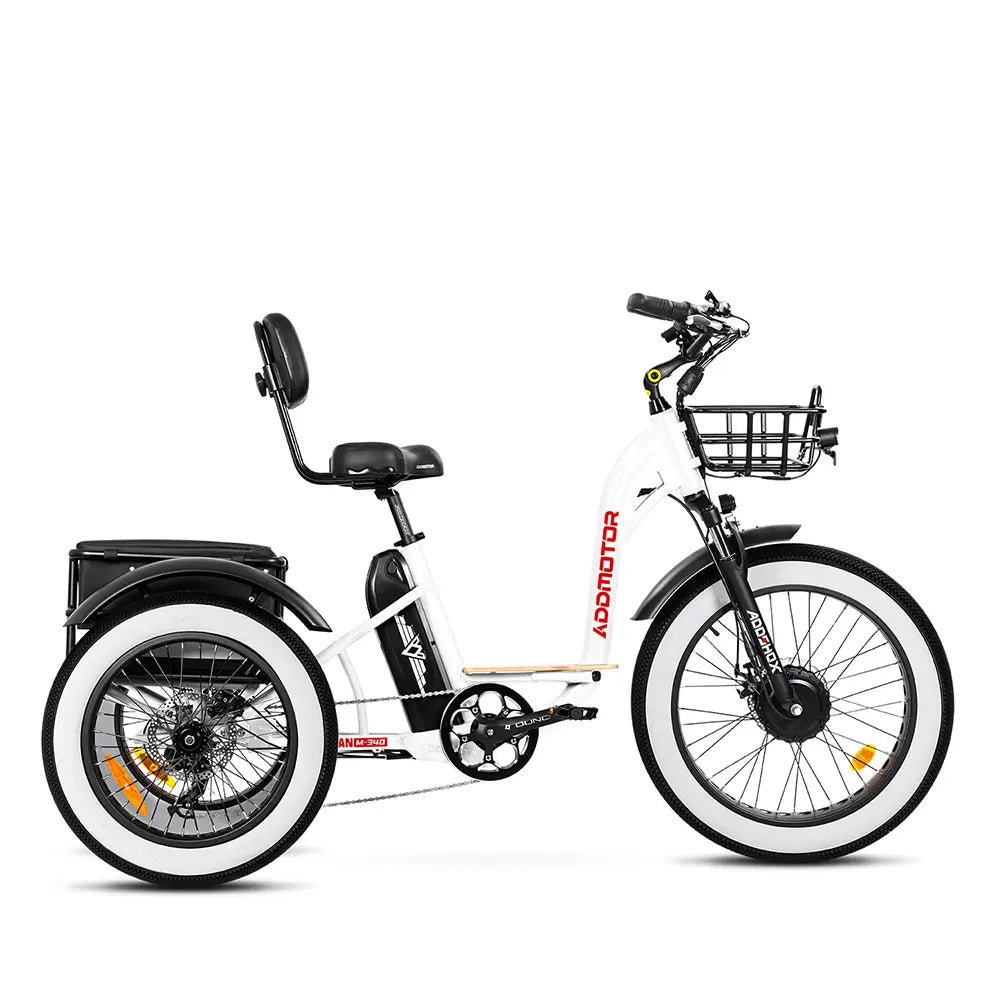

M-340 Electric Fat Trike

Motan Etrike SeriesUpgrade

All Motan series electric trikes have upgraded with the latest EB 2.0 system and most importantly, the battery capacity has expanded from 17.5Ah to 20Ah. Additionally, each mechanical component is more aesthetically pleasing, comfortable, and of high quality.

Redefine Your Lifestyle

With a new long-range battery and an energy-efficient motor, the 2023 version of Grandtan M-340 e-trike extends its maximum range by approximately 73% to help expand your adventure. The thrill of long rides is more accessible than ever!

Built To Comfort Your Every Ride

The upgraded Grandtan M-340 model is a full-featured fat tire electric tricycle, including a wide, butterfly-like, eco-friendly wooden footrest to fully support your feet, an adjustable handlebar, an ergonomic saddle with backrest, and 4-inch fat tires with great shock absorption capacity. Compared to the old one, it improves riding comfort by at least 30%.

4.0 Inch Kenda Fat Tires

4-inch Kenda fat tires, with layers of inner tube protector, high-volume inner tube and anti-slip cover tire, boost riding comfort and have better rollover capability & durability. Grandtan M-340 fat tire e-trike is ready for most types of terrains, including sandy beaches

750W Front-Mounted Motor

A 750W front-mounted motor makes the e-trike much more stable and helps maintain a better balanced state with fast acceleration. Additionally, it has a better heat dissipation performance to improve the efficiency of electrical energy utilization. Max Motor Torque: 80Nm Peak Motor Watts: 1,000W

20.0Ah High Capacity Samsung Battery

Grandtan M-340 fat tire e-trike is adapted to the EB 2.0 battery, the world's first 48V*20Ah UL-certified battery. It ensures an estimated max range of 85 miles with PAS 1 mode (8 MPH) and a safer and more reliable riding experience.  Charging Time: 9-10 Hrs Per Charge: 40-85 Miles

Addmotor 5 Inch LCD Display

Provides riding information of battery usage, mileage, speed, lighting usage, PAS level, current motor wattage, etc. This makes your ride safer and easier to control.

Integrated Headlight & Taillight

Grandtan M-340 model’s headlight & taillight are powered by the main battery pack and controlled by the uneven buttons, contributing to an integrated control system. Together, the lights have a 360° side view, ensuring you riding safety at night. 40-Lumen Headlight, 200m Visual Range, Adjustable Light Brightness, IPX5 Waterproof Grade.

EB 2.0 LIGHT SYSTEM

EB 2.0 lighting system comes with a multi-functional taillight, delivering the driving, danger, flashing, braking, and left & right turning signals. Please note that the braking light will automatically be activated when you apply the brakes.

Tektro Mechanical Disc Brake With Motor Cutoff Sensor

Grandtan M-340 e-trike is equipped with a full-wheel Tektro mechanical disc brake system with an automatic motor cutoff sensor. It produces strong friction on the rotors when applying the brake levers, allowing you to slow or stop quickly. 180mm F / 2*180mm Rear Brake Rotors
