A powerful ebike with 3-step folding design
750W
High-Power Motor
48V 15Ah
Battery
50 Miles
Range Per Charge (estimate)
350 Lbs
Max Load
Class 2
Max 25 MPH with Pedal Assist
Hydraulic
Disc Brakes
FEATURES

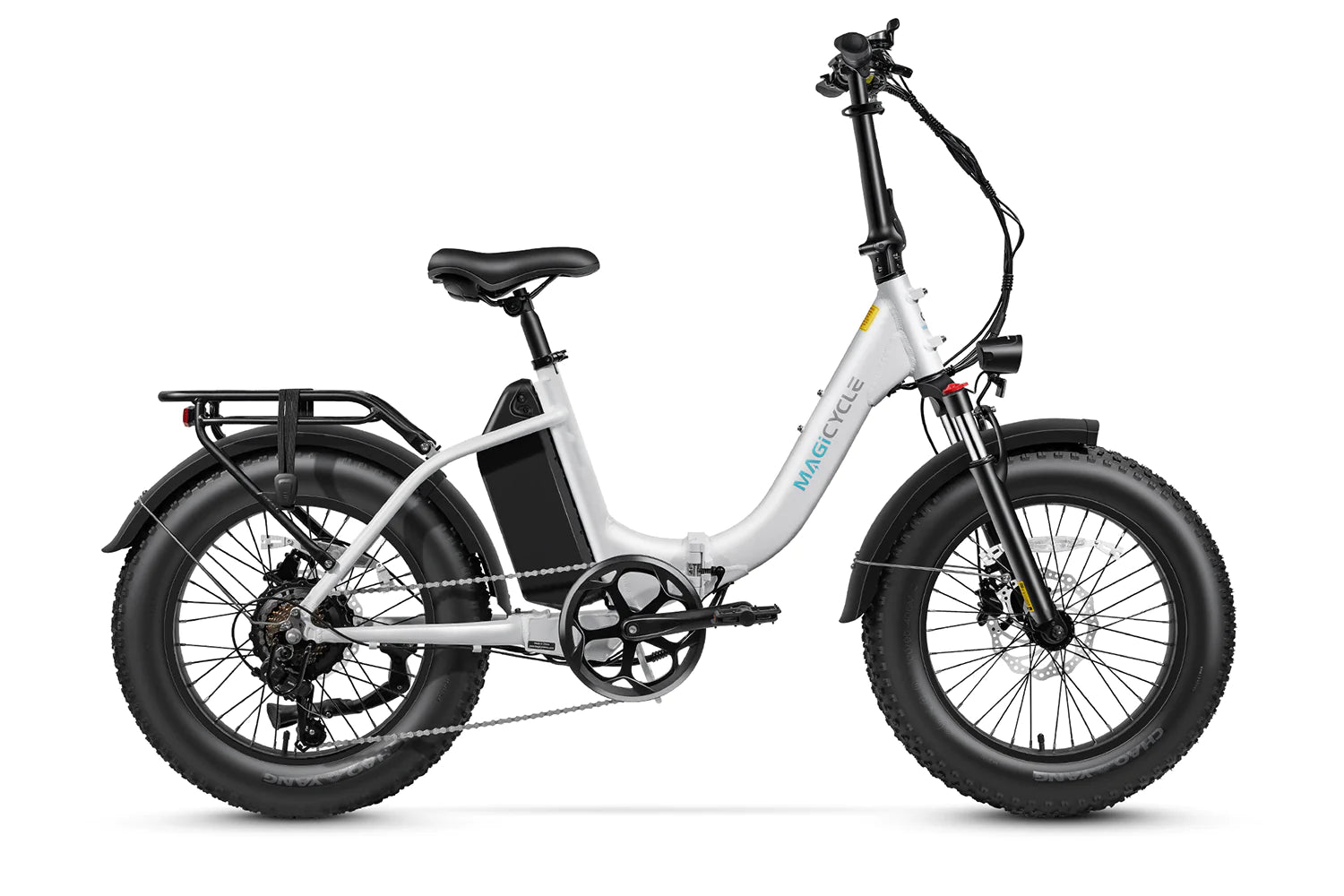

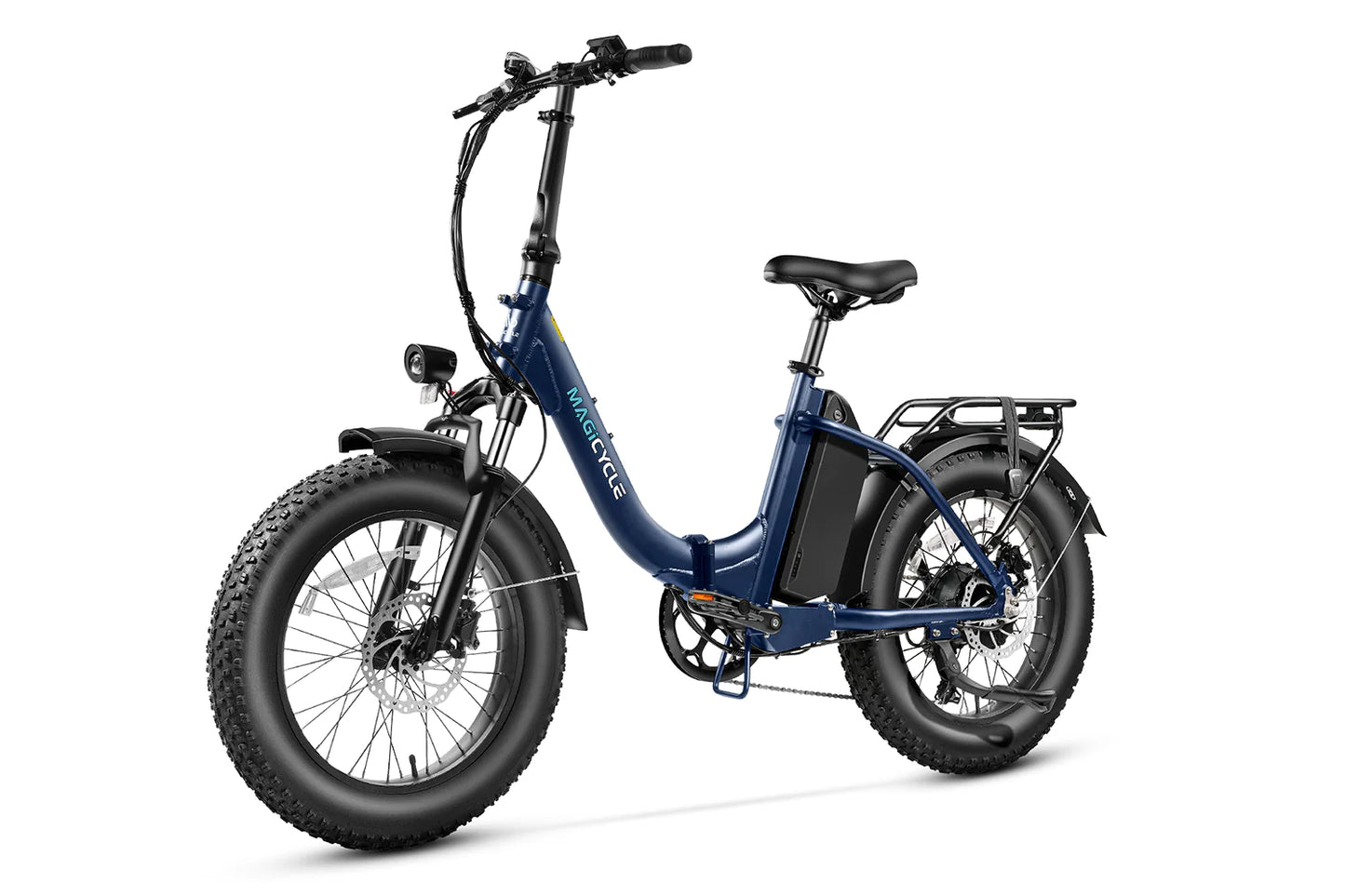

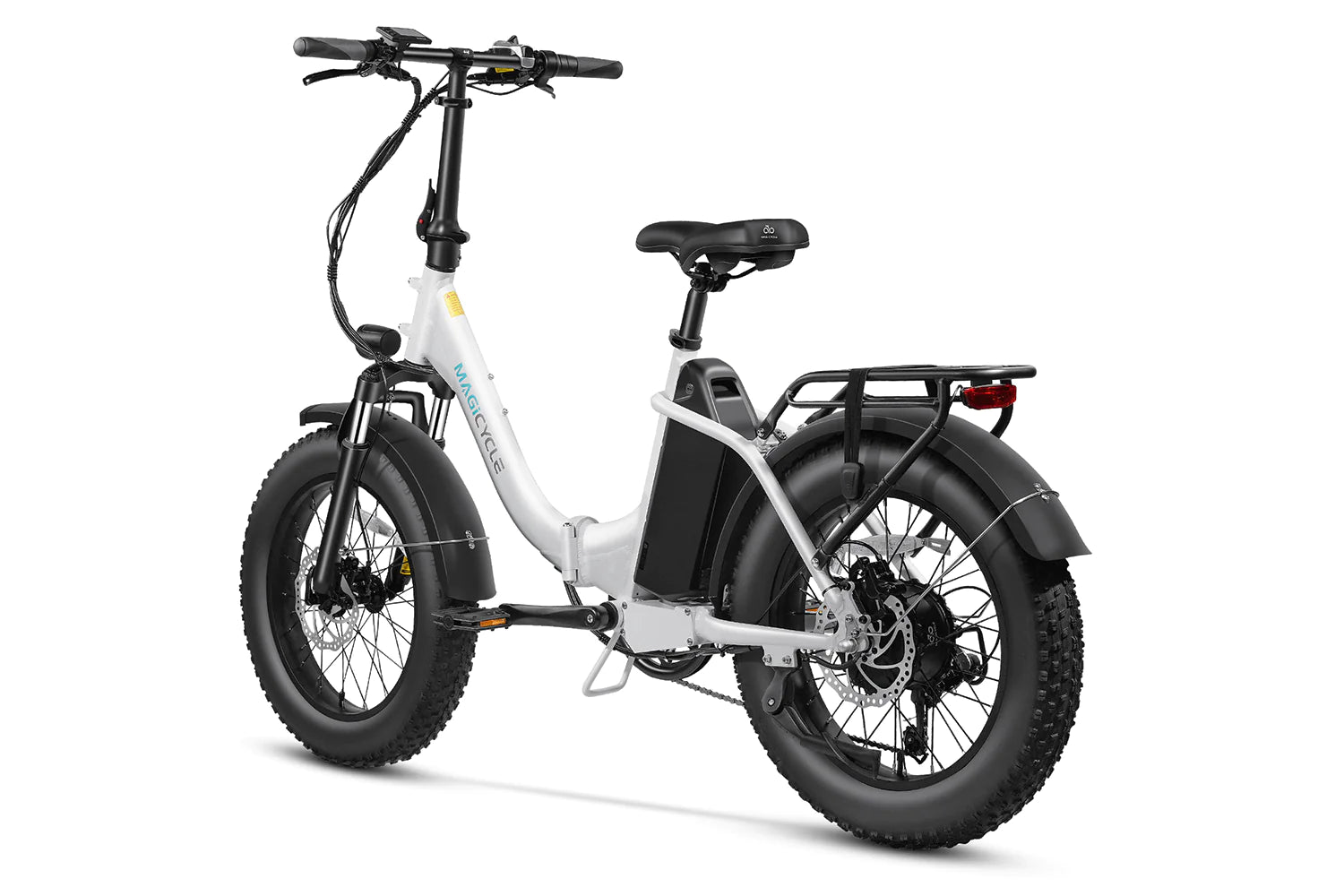

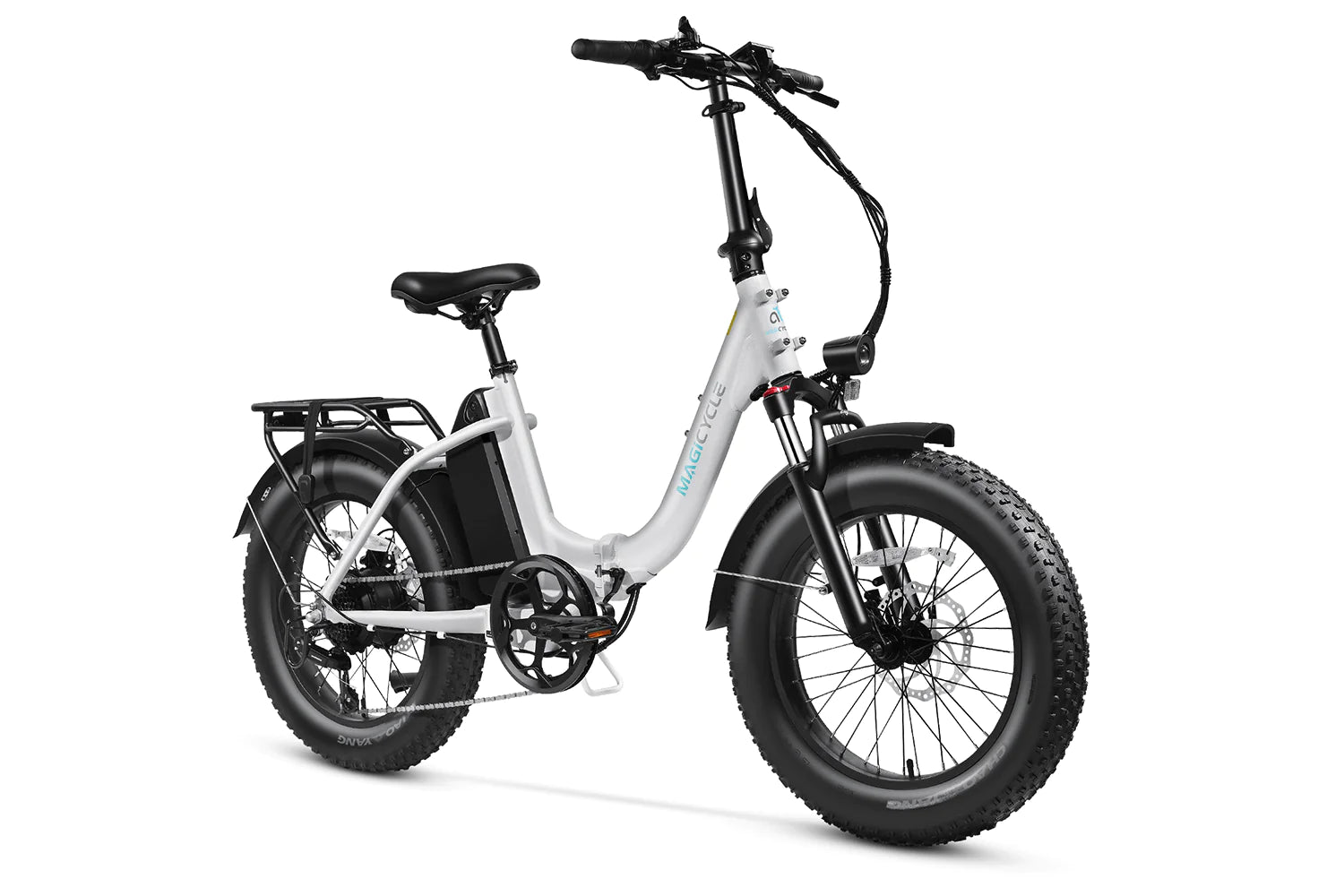

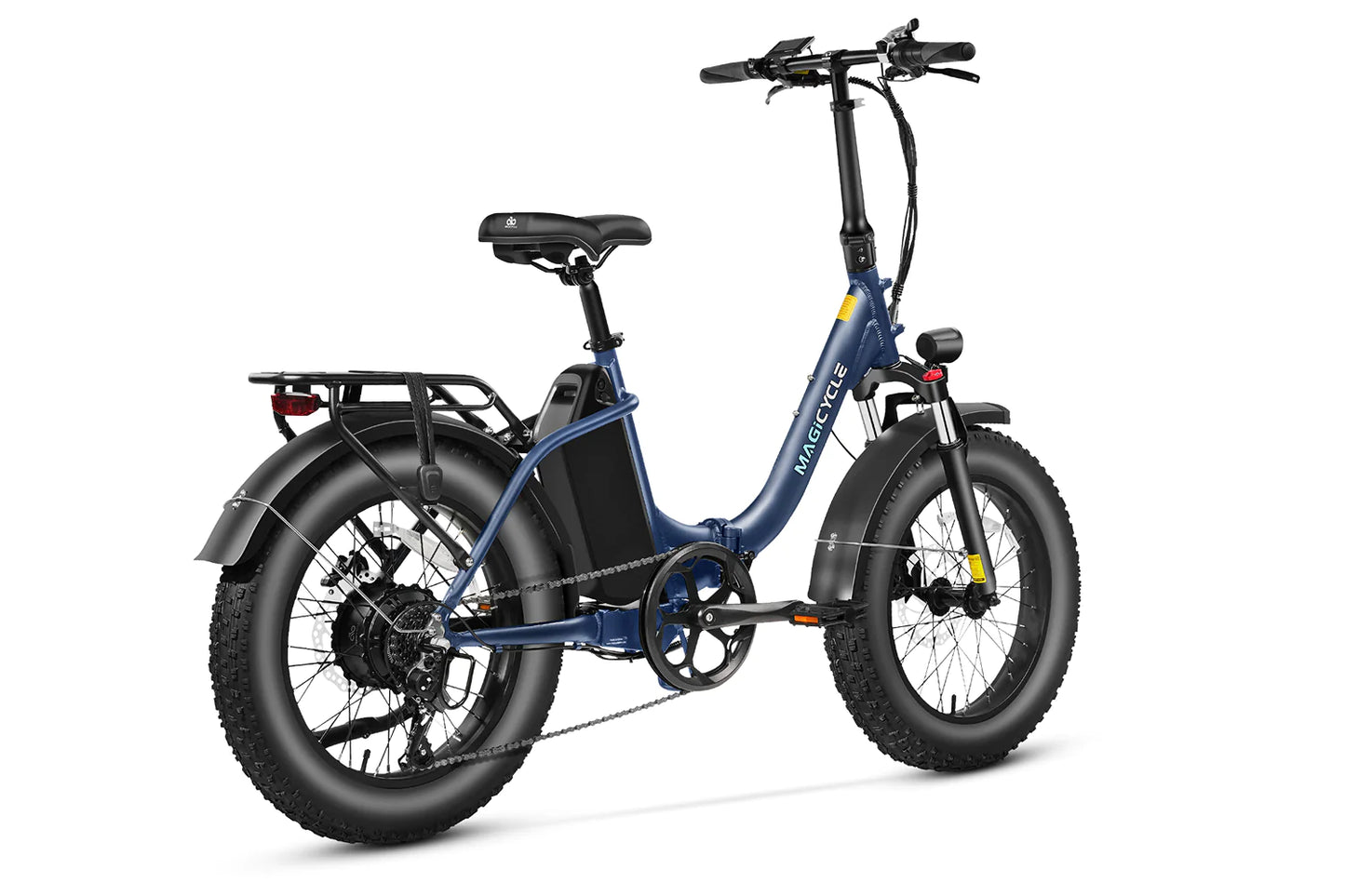

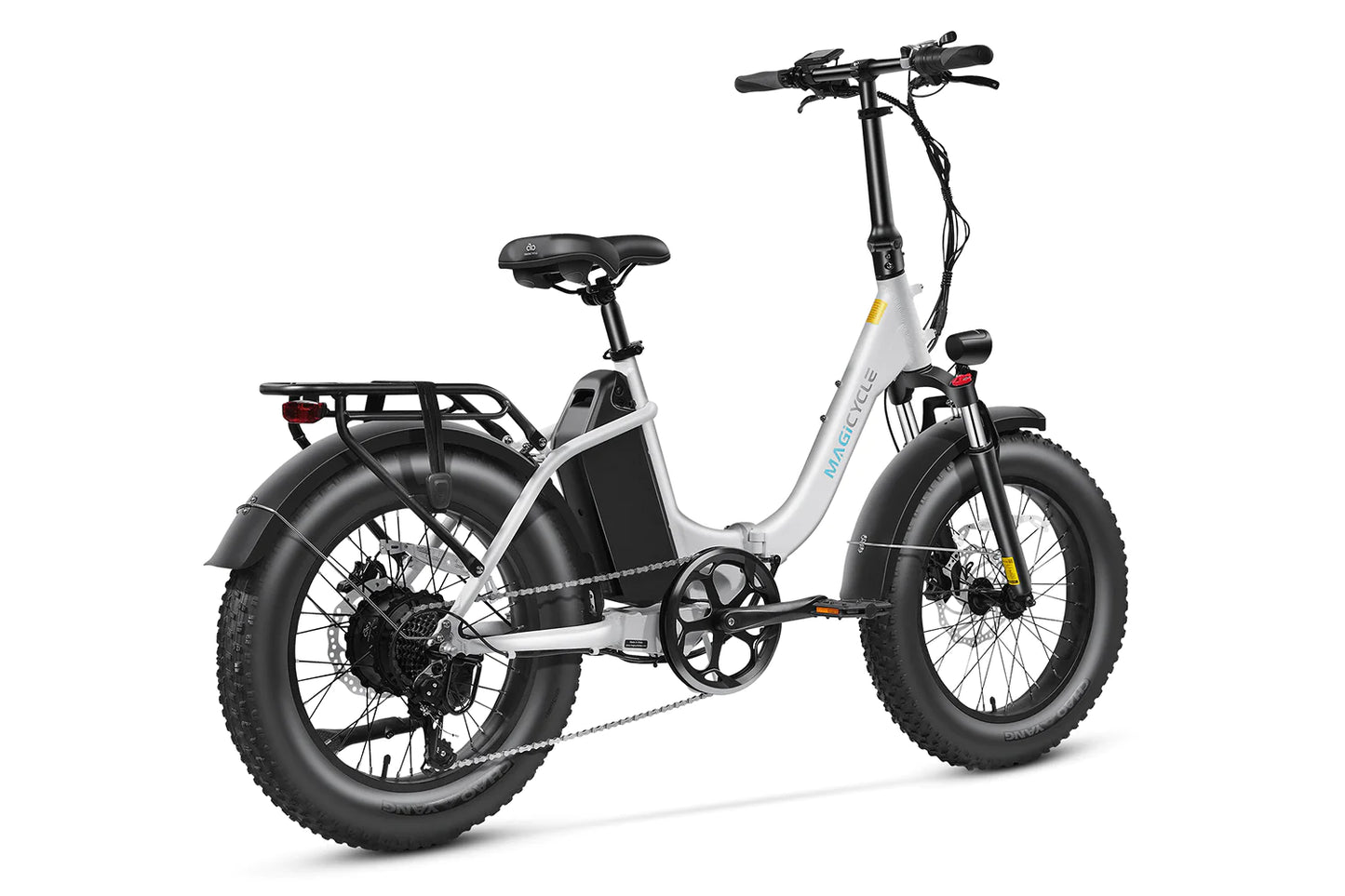

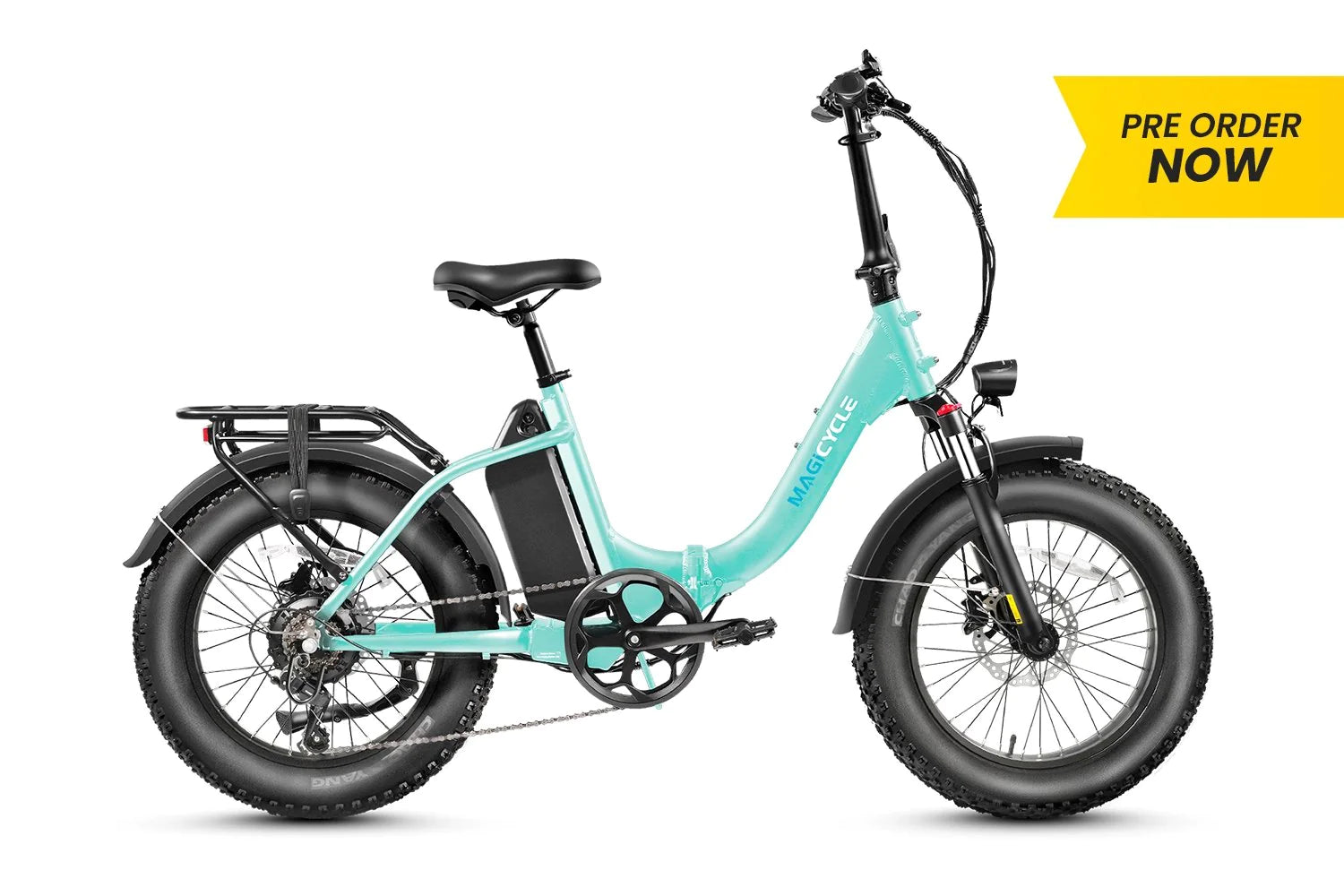

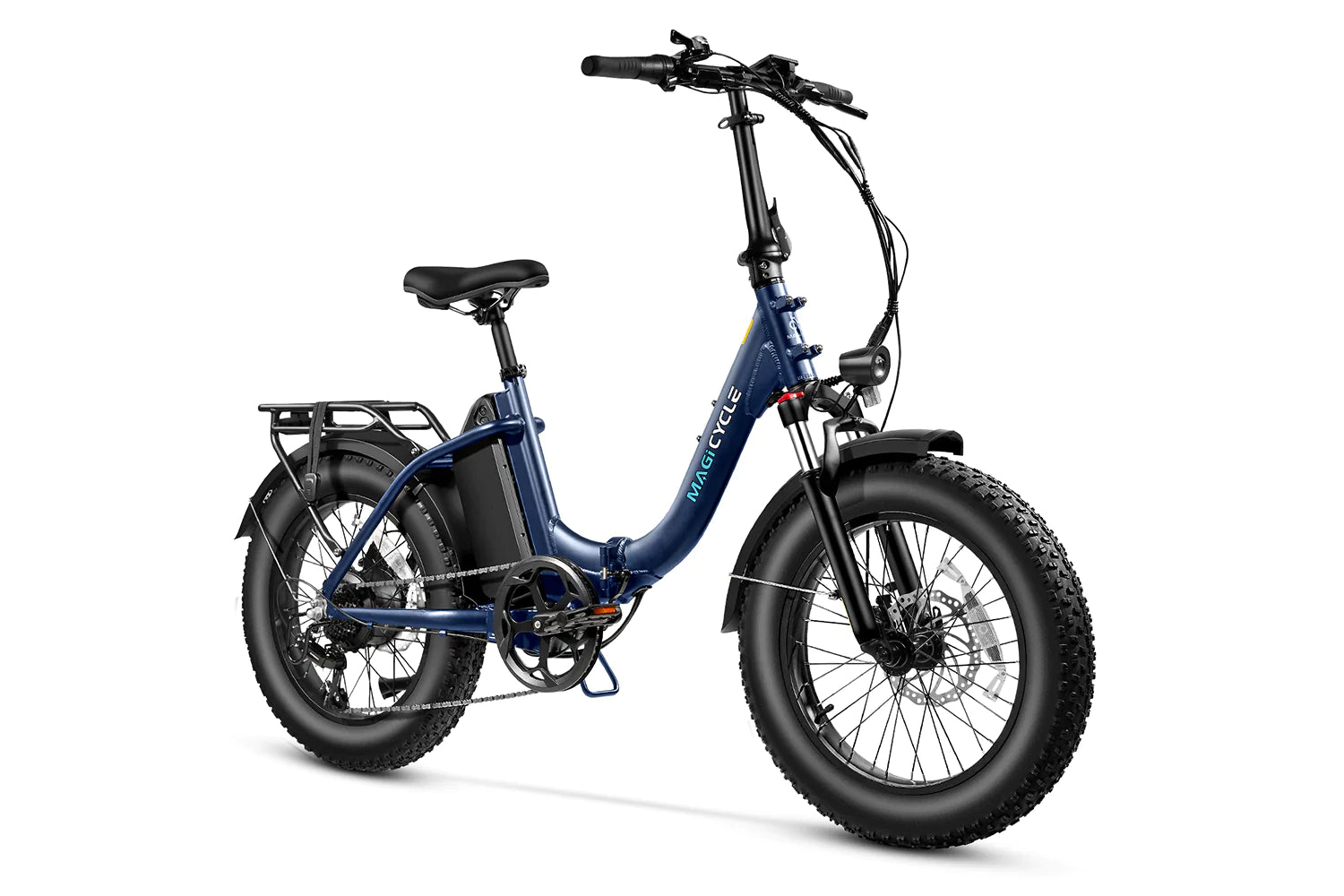

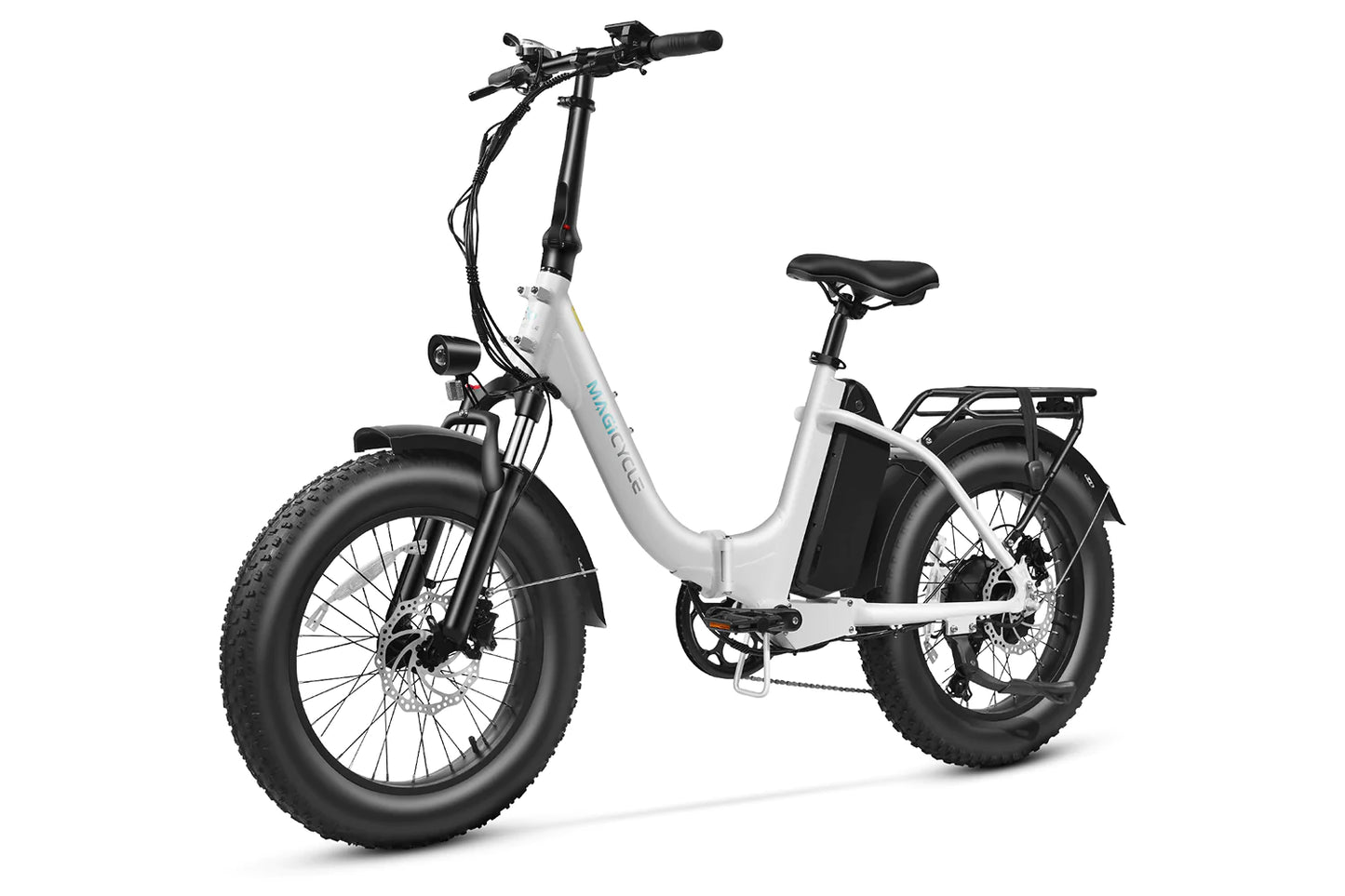

Magicycle Jaguarundi Ebike
Fold whenever you want in only 3 steps. The Jaguarundi features a perfect size for storage after being folded. As a folding ebike, it is equipped with both fat tires and a 750W hub motor, which ensures its off-road capability.

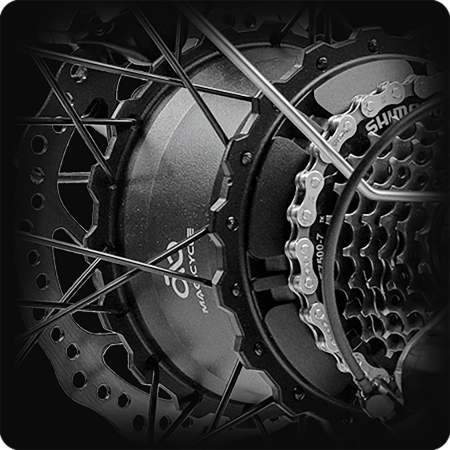

750W Motor
A folding ebike deserves a great power. The 750W high-power motor gives you the freedom to speed up as you do on a regular electric mountain bike.

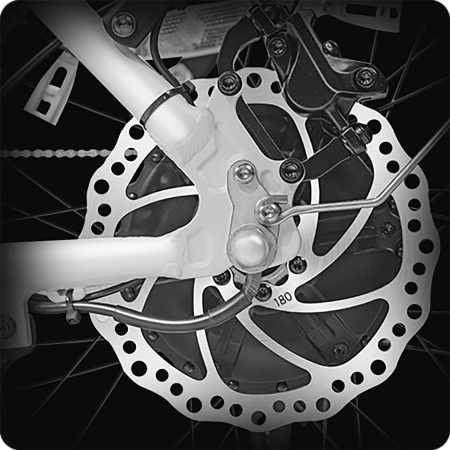

Hydraulic Disc Brakes
Stay safe wherever you go with hydraulic disc brakes. Get the amazing and responsive braking power at the flick of your fingers. You will be confident on every ride.

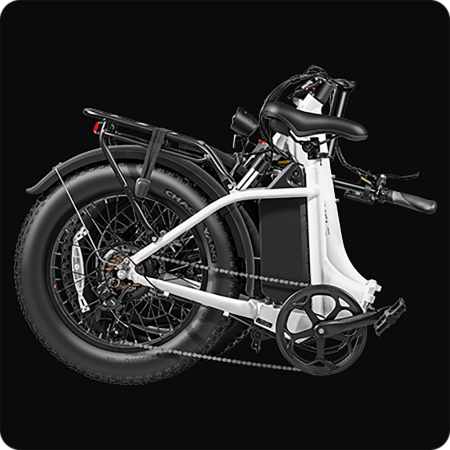

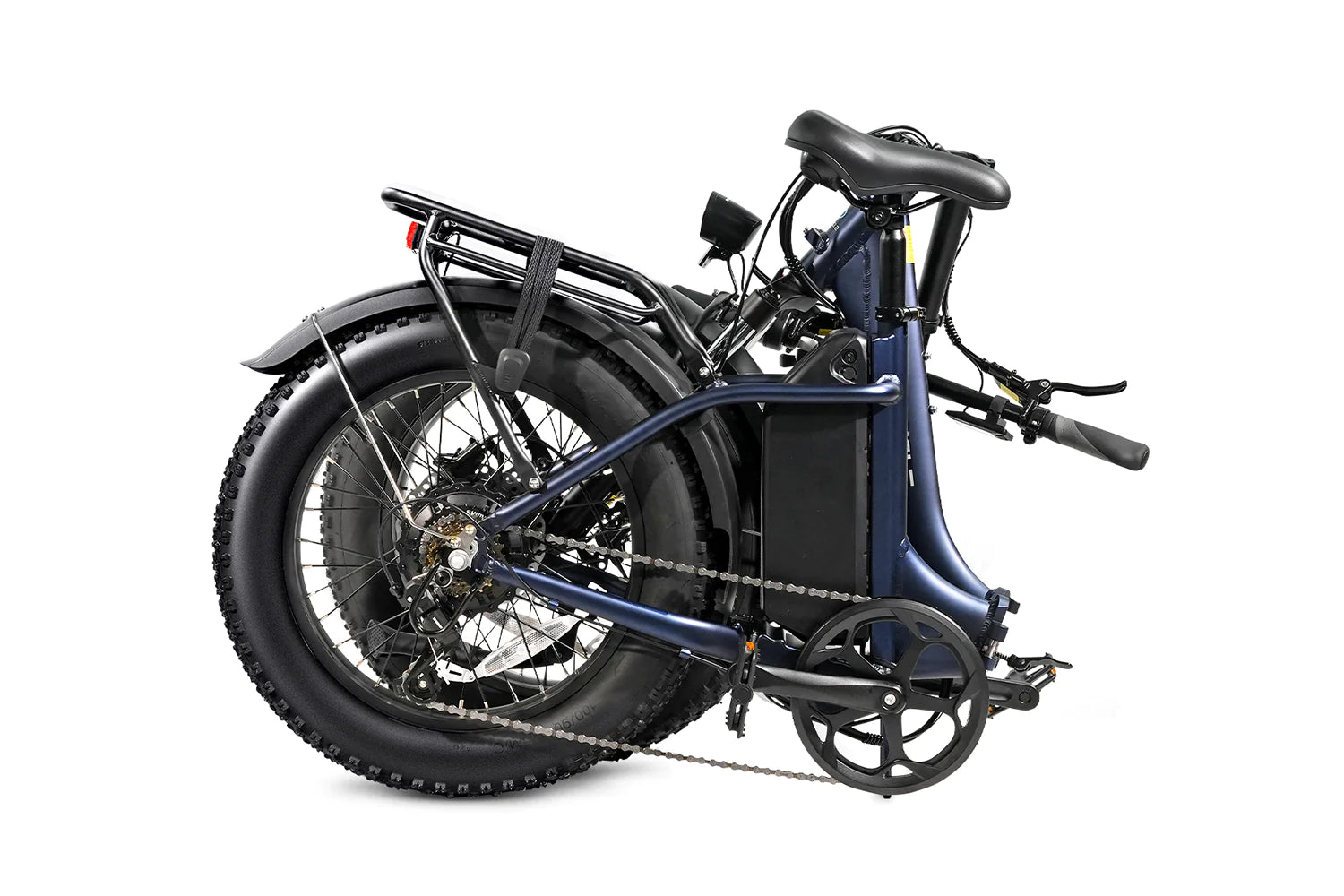

Quick Fold in 3 Steps
The quick-fold design enables the bike to be folded in 3 steps: release the lock of the handlebar, press down the folding latch, and hold down the little red button while breaking the bike in half, taking you only 10 seconds.

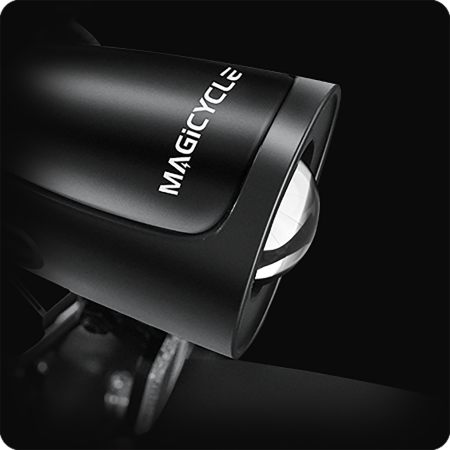

48V LED Headlight
A 48V LED headlight leads to a better vision while cycling at night. No need to worry about your safety with this headlight illuminating the road ahead.

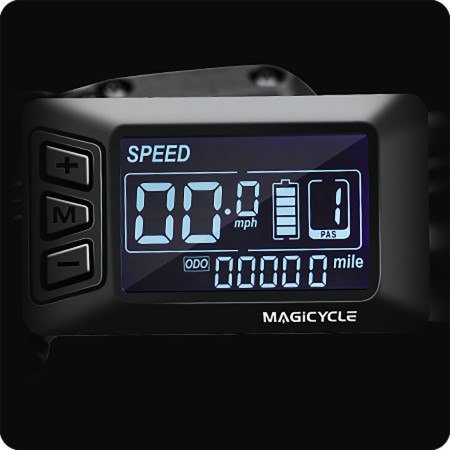

Multi-Functional Display
Acquire all the real-time information on this display. Interact with the bike using various functions like cruise control, PAS, etc, customize your riding experience.
Real World Range Testing
On Throttle
25 MPH
Top Speed
48V 15Ah
Battery Capacity
Pedal Assist
1
10 MPH
SPEED
60 Miles
RANGE
2
17 MPH
SPEED
47 Miles
RANGE
3
20 MPH
SPEED
34 Miles
RANGE
4
22 MPH
SPEED
30 Miles
RANGE
5
25 MPH
SPEED
28 Miles
RANGE
Specification
Battery
48V 15Ah lithium battery
Display
Backlight Display
Charger
Short-circuit proof 2.0A fast smart charger
Charging Time
5 - 7 Hours
Range
35-50 miles
Total Payload Capacity
350lbs
Controller
48V 750W FOC smart controller, Current Limit: 18Ah
Weight
60lbs/27kg
Hub Motor
750W Rear Hub Motor

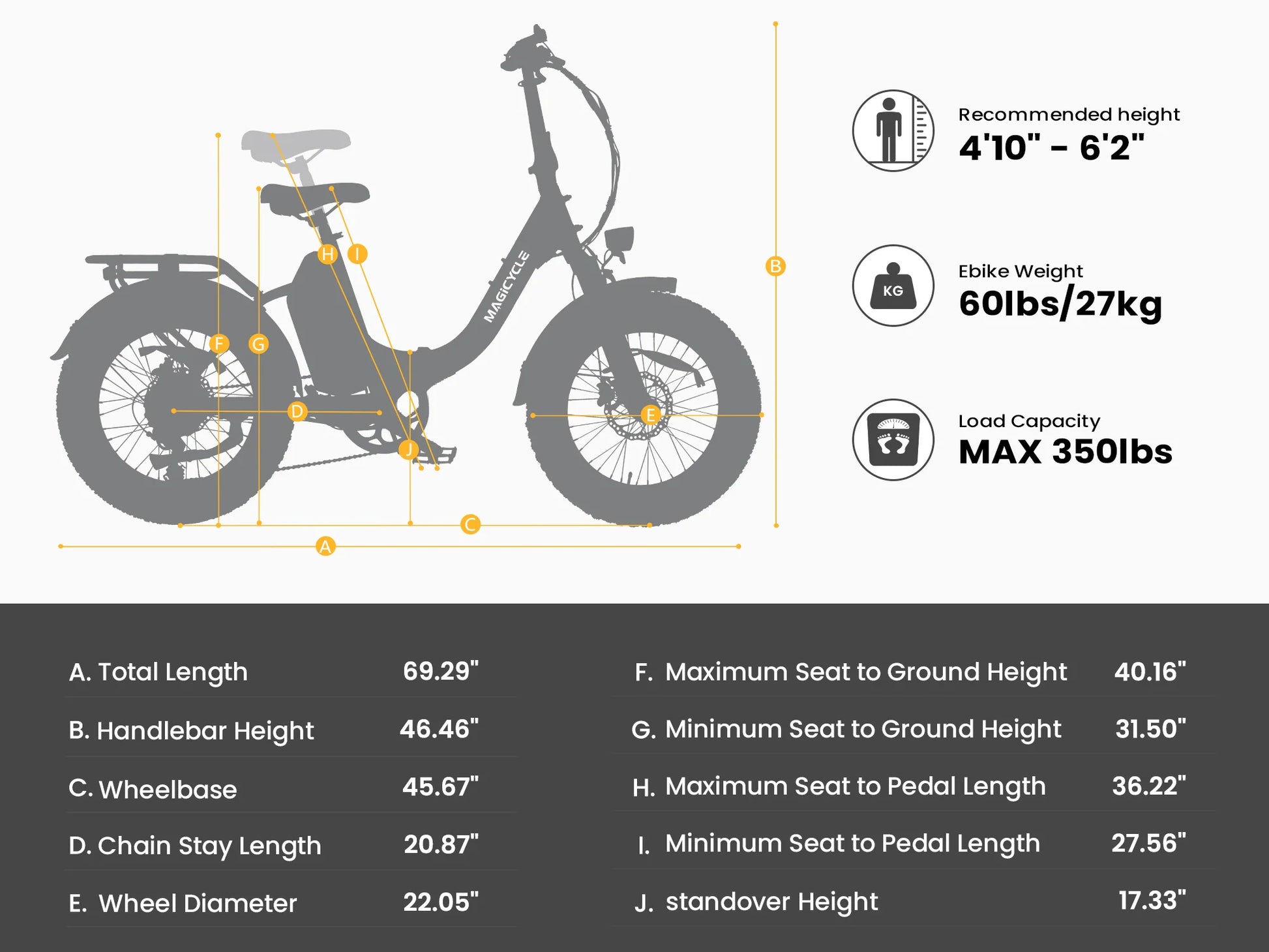

Frame size
18"
Recommended Rider Heights
4'10" - 6'2"
Pedal Assist
Intelligent 7-level pedal assist with 12-magnet cadence sensor
Package Dimension
153CM x 36CM x 83CM
Tires
20"x4.0"
Front Light
48V LED light
Front Fork
Alloy Mechanical lockout suspension fork
Saddle
Super Soft Cushion
Throttle
Half twist throttle
Stem
YC-008/YC-B209
Lights
Integrated front light
Seat Post
Diameter 24mm length 311mm
Crankset
52T Chainring, 16*170L ALuminum Crank, Double-sided Bash guard
Freewheel
Shimano-14-28T BROWN/BK
Kickstand
Heavy Duty Aluminum
Bike Frame
20" 6061 Aluminum Frame
Gearing
Shimano 7 Speed Gear Shift System
Brake
180mm Hydraulic Disc Brakes
Spokes
36 spokes in total for the front and rear wheels
