Magnum Bikes

Pilot MD Ebike

Pilot MD Ebike

Regular price $2,999.00 USD
Regular price Sale price $2,999.00 USD
Sale Sold out
Shipping calculated at checkout.

The Magnum Pilot MD

With our new Ananda mid-drive system, the Pilot feels natural and balanced while cruising the boardwalk or on evening neighborhood rides with the family. An integrated but removable battery hides in the frame, and the thumb throttle means you only have to pedal on your terms. Available in a variety of eye-catching colors, the Pilot will get you there in comfort and look good doing it.


  • CategoryTouring
  • ClassCan be configured to a Class 1, 2, or 3 E-Bike.
  • Frame TypeLow-step
  • SeatingRelaxed
  • Perfect ForPaved / Light Trails / Recreation


The Pilot’s integrated and color-matched battery has a 15Ah capacity, and the ability to take a rider up to 50 miles on a single charge.


50 miles (80 Kilometers) Max Range

7.5 Hours Charge Time

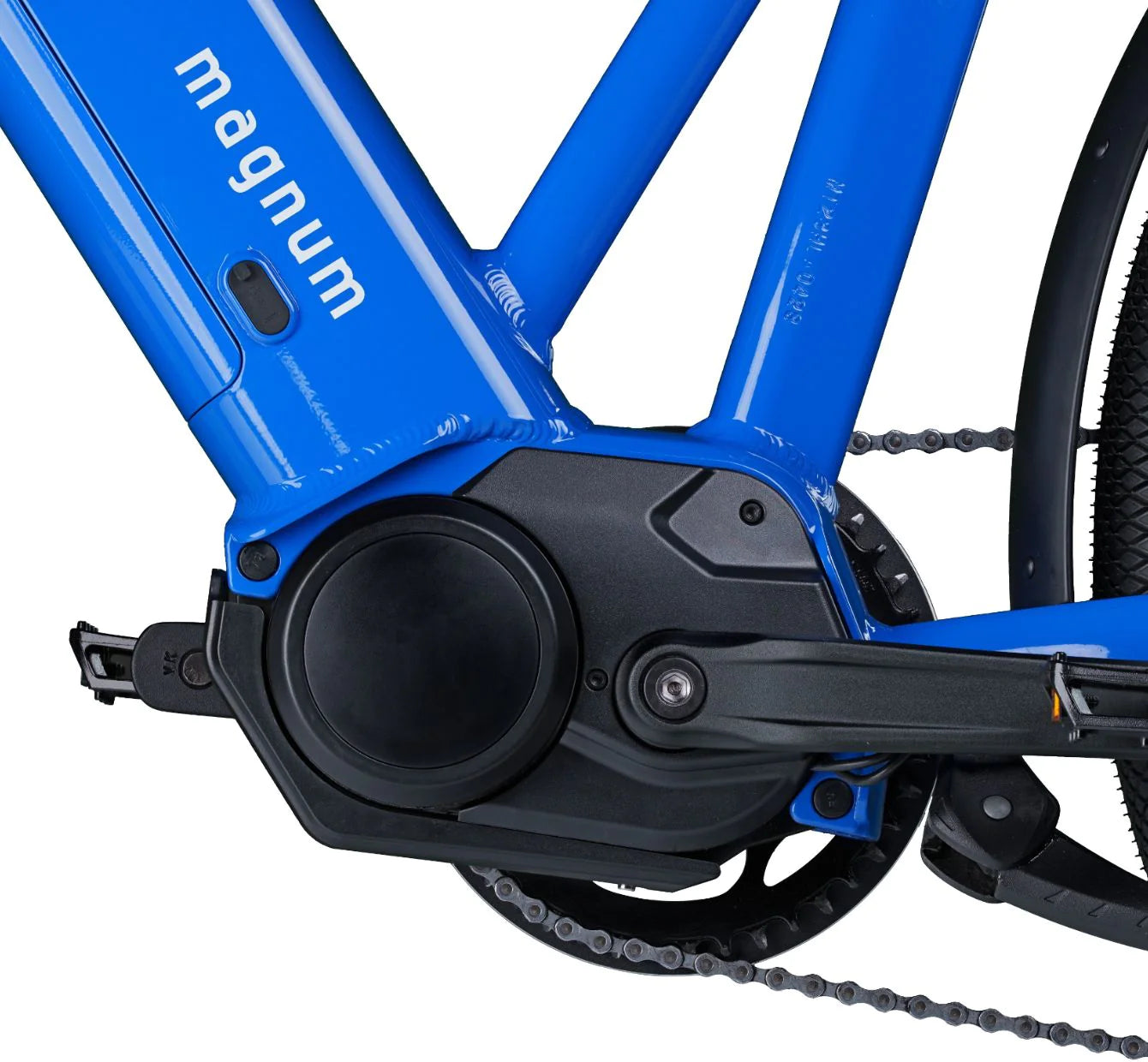

Throttle-controlled mid-drive motor

Equipped with a powerful 500W mid-drive motor, this e-bike has natural power delivery, increased water resistance, and unique throttle control. It also features a derailleur clutch for rough terrain and a quick-detach rear wheel for easy maintenance.


Electronic Details

Motor Brand Ananda

Motor Type Mid-Drive Motor

Motor Nominal Output 500 Watts

Motor Peak Output 750 Watts

Battery Brand Samsung Cells

Battery Voltage 48 Volts

Battery Ah 15Ah

Battery Wh 720Wh

Battery Chemistry Li-NMC

Battery Charge Time (from empty) 7.5 Hours

Minimum Range 25 Miles (40 Kilometers)

Maximum Range 50 miles (80 Kilometers)

Display Type Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD

Display Readouts Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time

Drive Mode Torque Sensor Pedal Assist, Thumb Throttle, Walk Mode

Top Speed Up to 28 mph with Pedal Assist, 20 mph with Throttle

Lights Integrated front and rear lights.

Frame material Aluminum Alloy

Fork Details Suntour XCM32 Boost

Gearing details Microshift Advent 10-Speed

Shifter Details Microshift Advent 10-Speed

Crank Aluminum Alloy 170mm

Pedals Wellgo

Stem Tool-free Adjustable

Brakes Tektro Hydraulic

Grips Brown Faux Leather

Saddle Selle Royal Freeway

Tire Brand 26 x 3.0

Wheel size 26”

Fenders Front and Rear Included

Chain KMC 10-Speed

Seat Tube 17.5" (44 cm)

Reach 16.75" (42.5 cm)

Stand Over Height 19.25" (49 cm)

Virtual Top Tube Length 23.25" (59 cm)

Min Saddle Height 23" (58 cm)

Max Saddle Height 29.25" (74 cm)

Width 27" (69 cm)

Wheelbase 48" (122 cm)

Length 76" (193 cm)

Total Weight 74.5 lbs (33.75 kg)

Battery Weight 8.5 lbs (3.9 kg)

Recommended Minimum Rider Height 5'0"

Kickstand Includes Center-Mounted Single Side Adjustable Length Kickstand

Bell Includes Bell

Charger Includes 54.6V 2A Charger

Front Rack Coming Soon

Rear Rack Includes Rear Rack

Fenders Includes Front and Rear Fenders

Accessory Mounts Includes Built-In Head Tube and Top Tube Accessory Mounts

View full details
