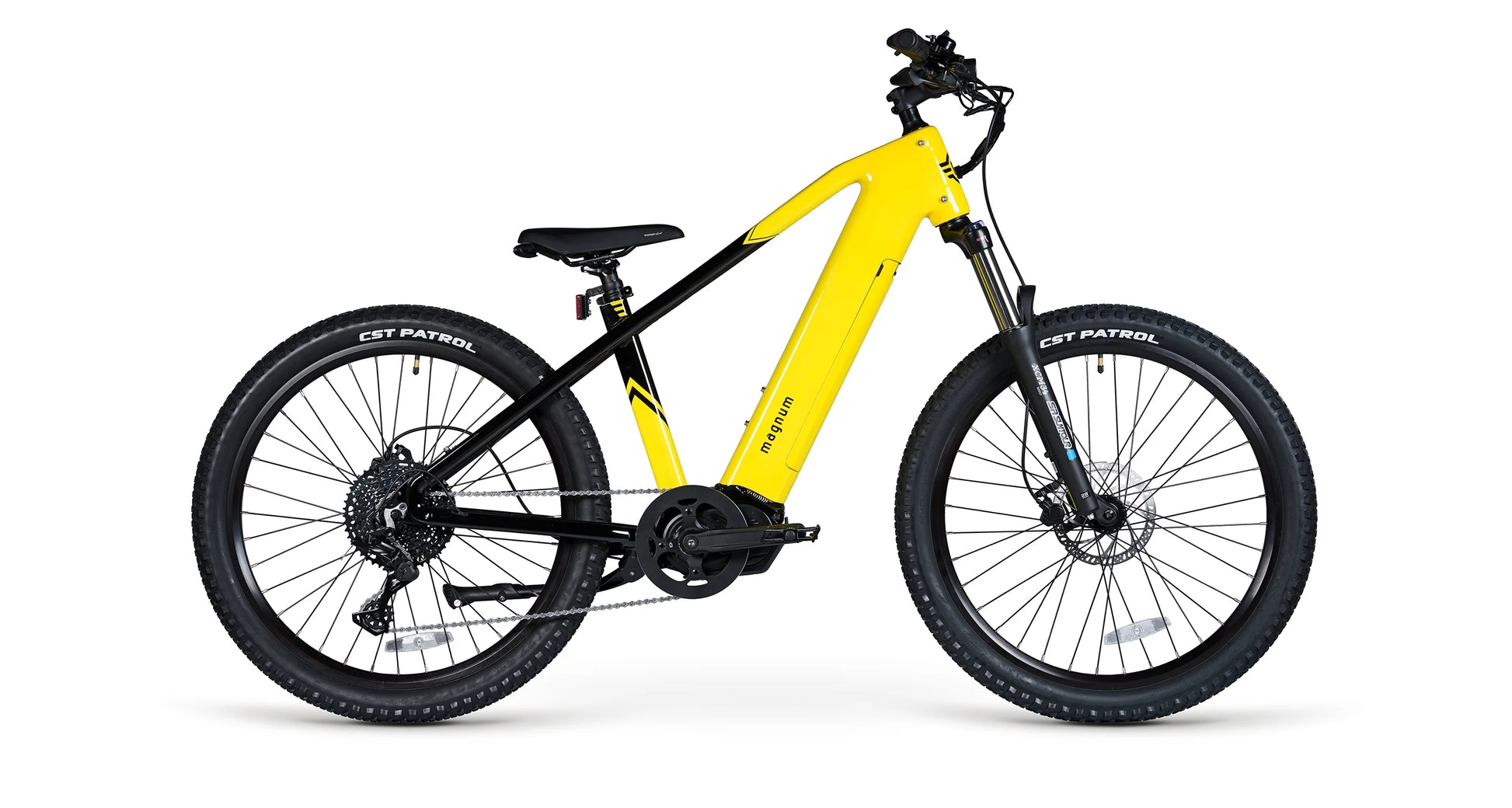

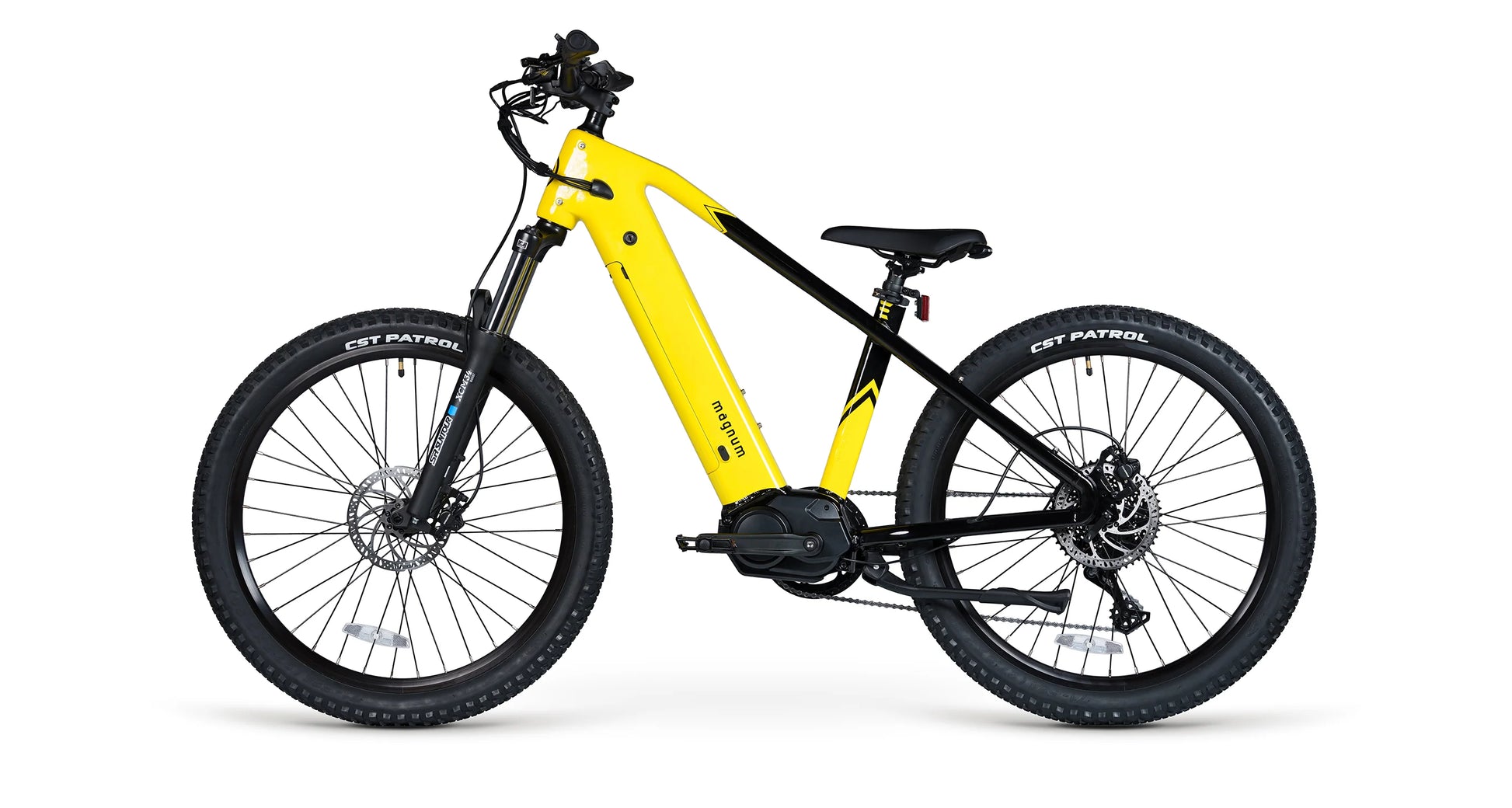

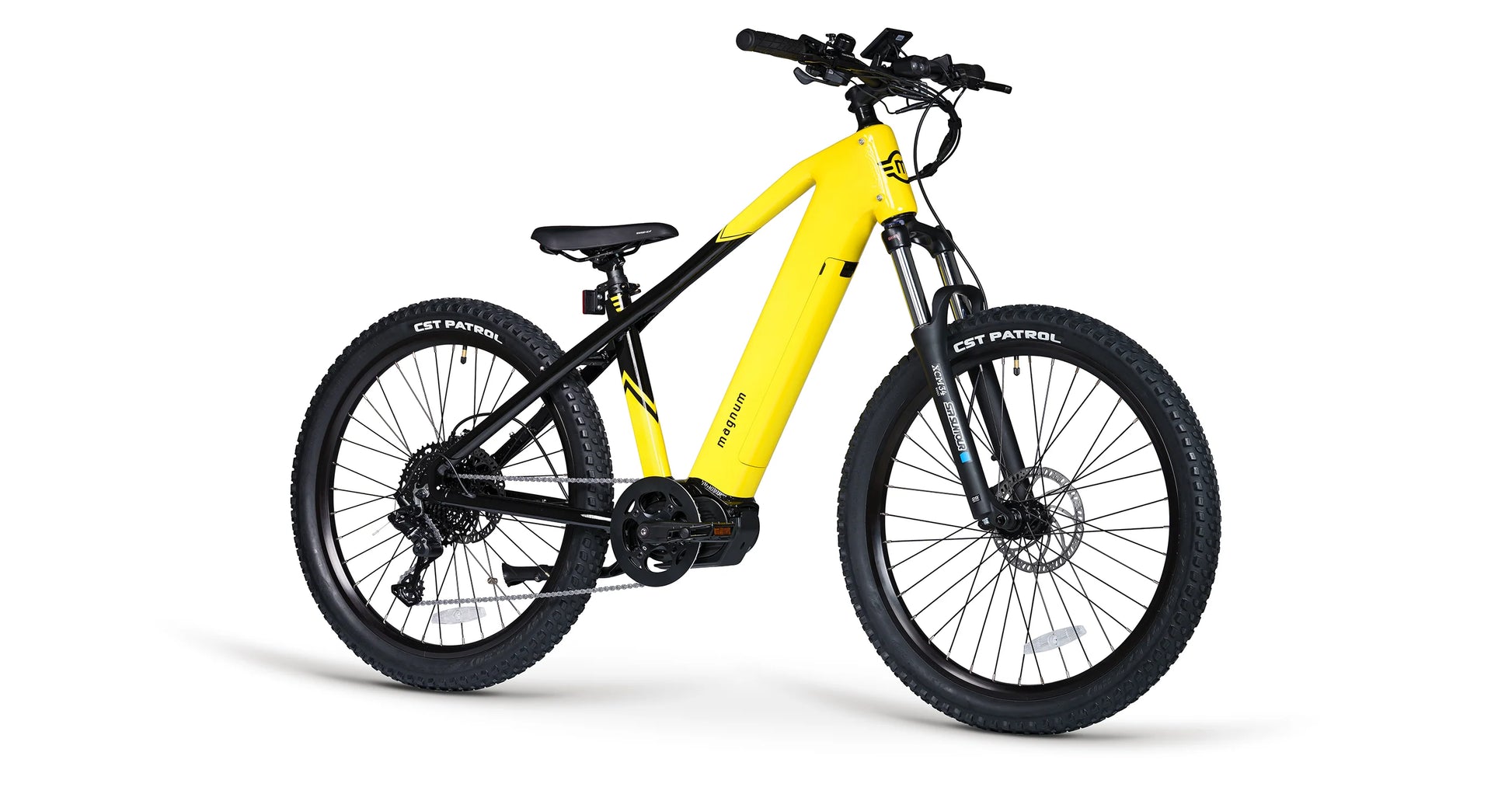

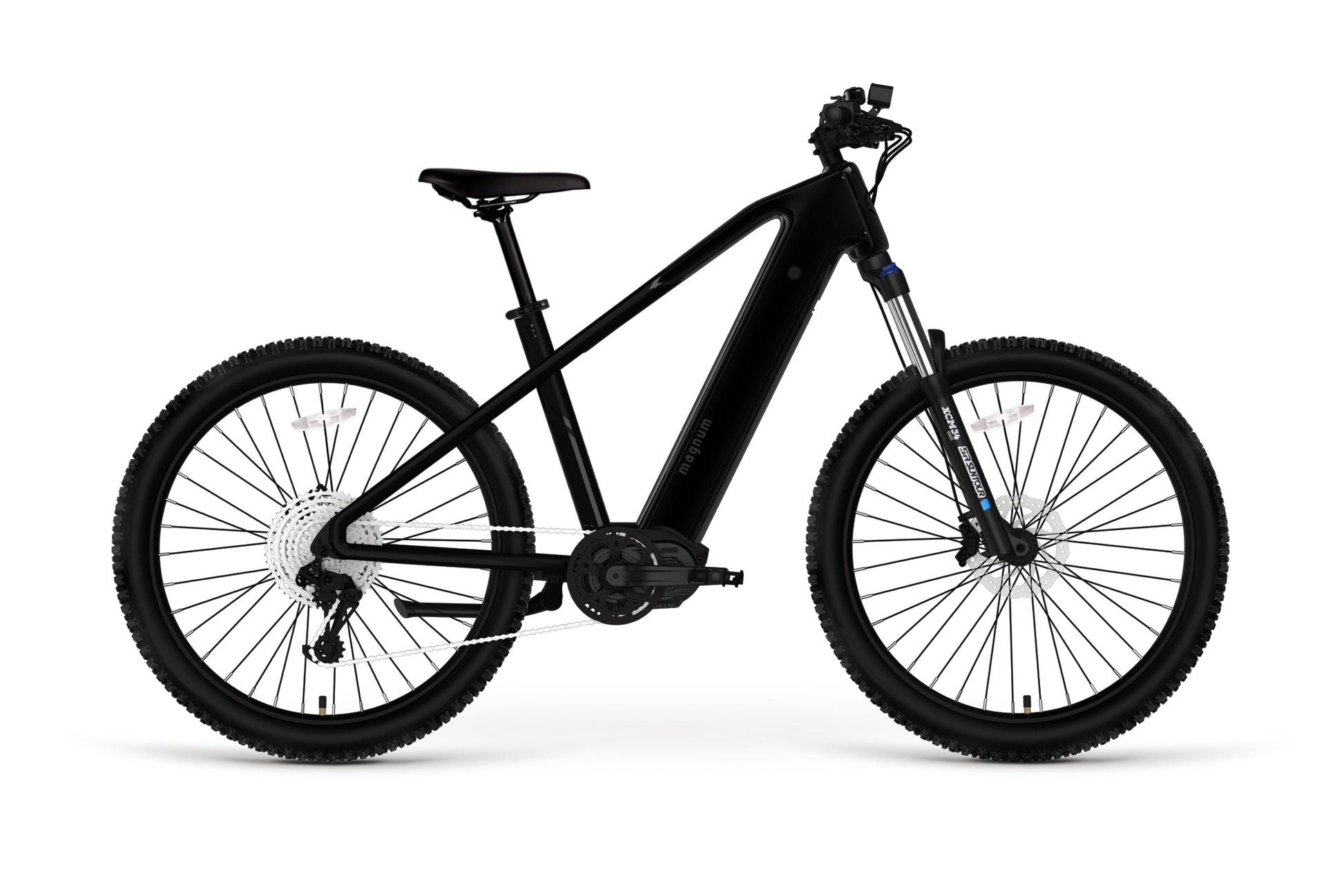

Magnum Vertex Mid Drive EMTB

Magnum Vertex Mid Drive EMTB

Regular price $2,499.00 USD
Regular price Sale price $2,499.00 USD
Sale Sold out
Shipping calculated at checkout.
Color

Magnum Vertex Mid Drive EMTB

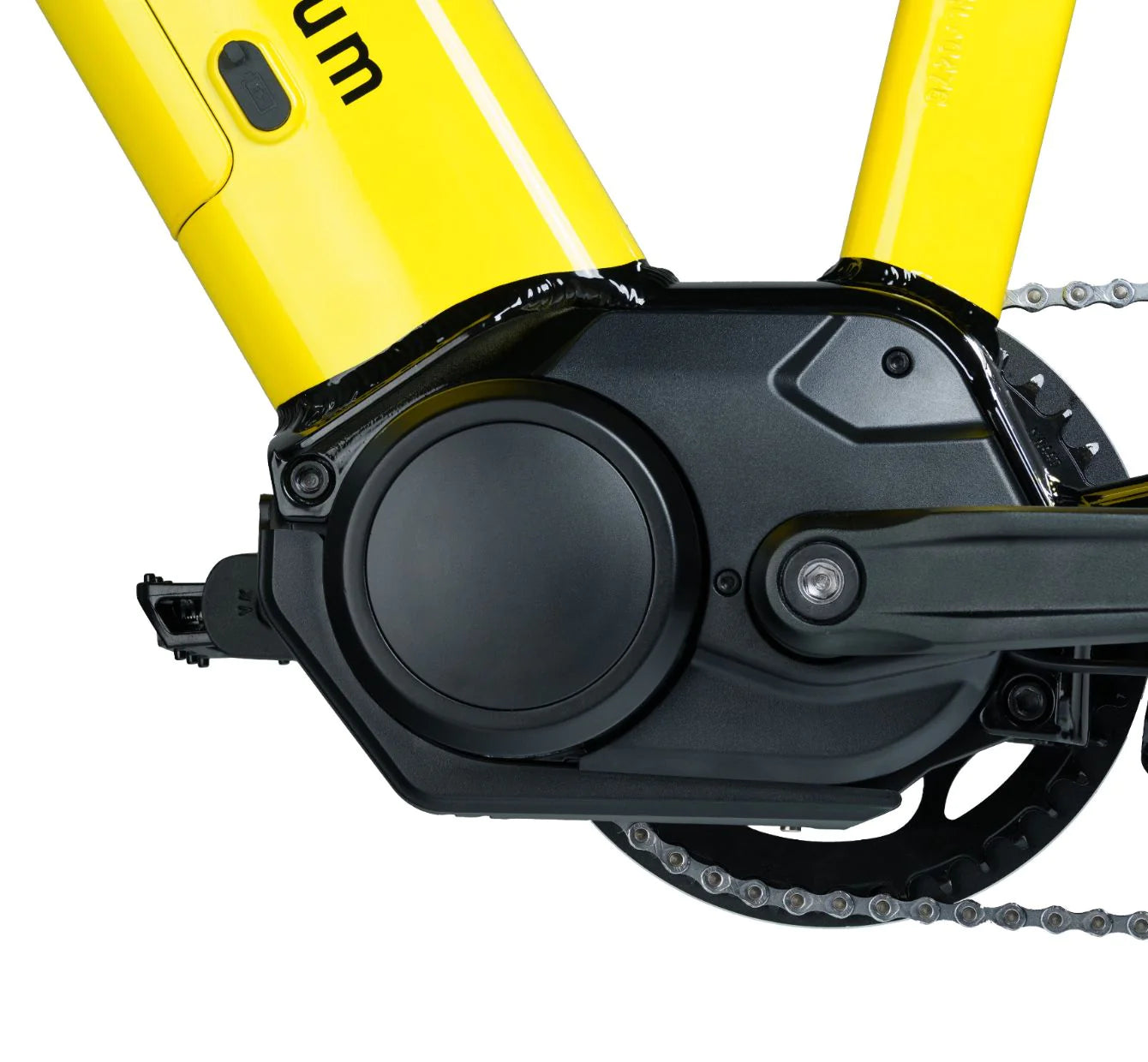

Motor Brand Ananda

Motor Type Mid-Drive Motor

Motor Nominal Output 500 Watts

Motor Peak Output 750 Watts

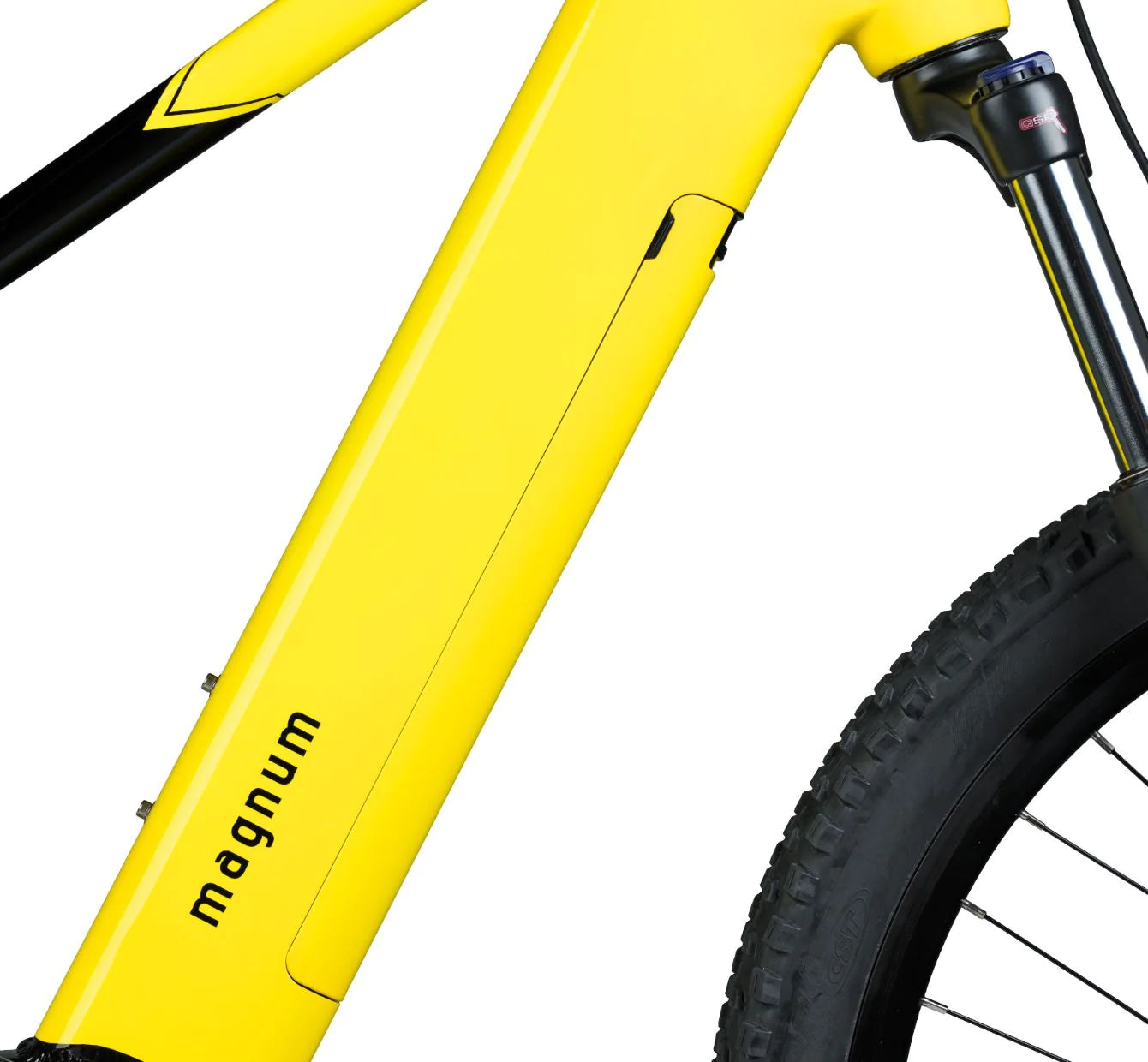

Battery Brand Samsung Cells

Battery Voltage 48 Volts

Battery Ah 15Ah

Battery Wh 720Wh

Battery Chemistry Li-NMC

Battery Charge Time (from empty) 7.5 Hours

Minimum Range 25 Miles (40 Kilometers)

Maximum Range 50 miles (80 Kilometers)

Display Type Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD

Frame material Aluminum Alloy




Fork Details Suntour XCM34 Boost



Gearing details Microshift Advent 10-Speed

Shifter Details Microshift Advent 10-Speed

Crank Aluminum Alloy 170mm

Pedals Wellgo

Stem Aluminum Alloy 60mm

Brakes Tektro Hydraulic

Grips Black Ergonomic Rubber

Saddle Selle Royal Essenza+

Tire Brand 27.5 x 2.8

Wheel size 27.5”

Chain KMC 10-Speed

Seat Tube 17.5" (44 cm)

Reach 16" (40.5 cm)

Stand Over Height 33" (84 cm)

Virtual Top Tube Length 21" (53 cm)

Min Saddle Height 21" (53 cm)

Max Saddle Height 29.5" (75 cm)

Width 28.5" (72 cm)

Wheelbase 47.5" (120.5 cm)

Length 76.25" (193.5 cm)

Total Weight 74.5 lbs (33.75 kg)

Battery Weight 8.5 lbs (3.9 kg)

Recommended Minimum Rider Height 5'5"

Kickstand includes Center-Mounted Single Side Adjustable Length Kickstand

Bell Includes Bell

Charger Includes 54.6V 2A Charger

Front Rack Not Optional

Rear Rack Optional Rear Rack (Not Included)

Fenders Optional Front and Rear Fenders (Not Included)

Accessory Mounts Includes Built-In Head Tube and Top Tube Accessory Mounts
