Velotric

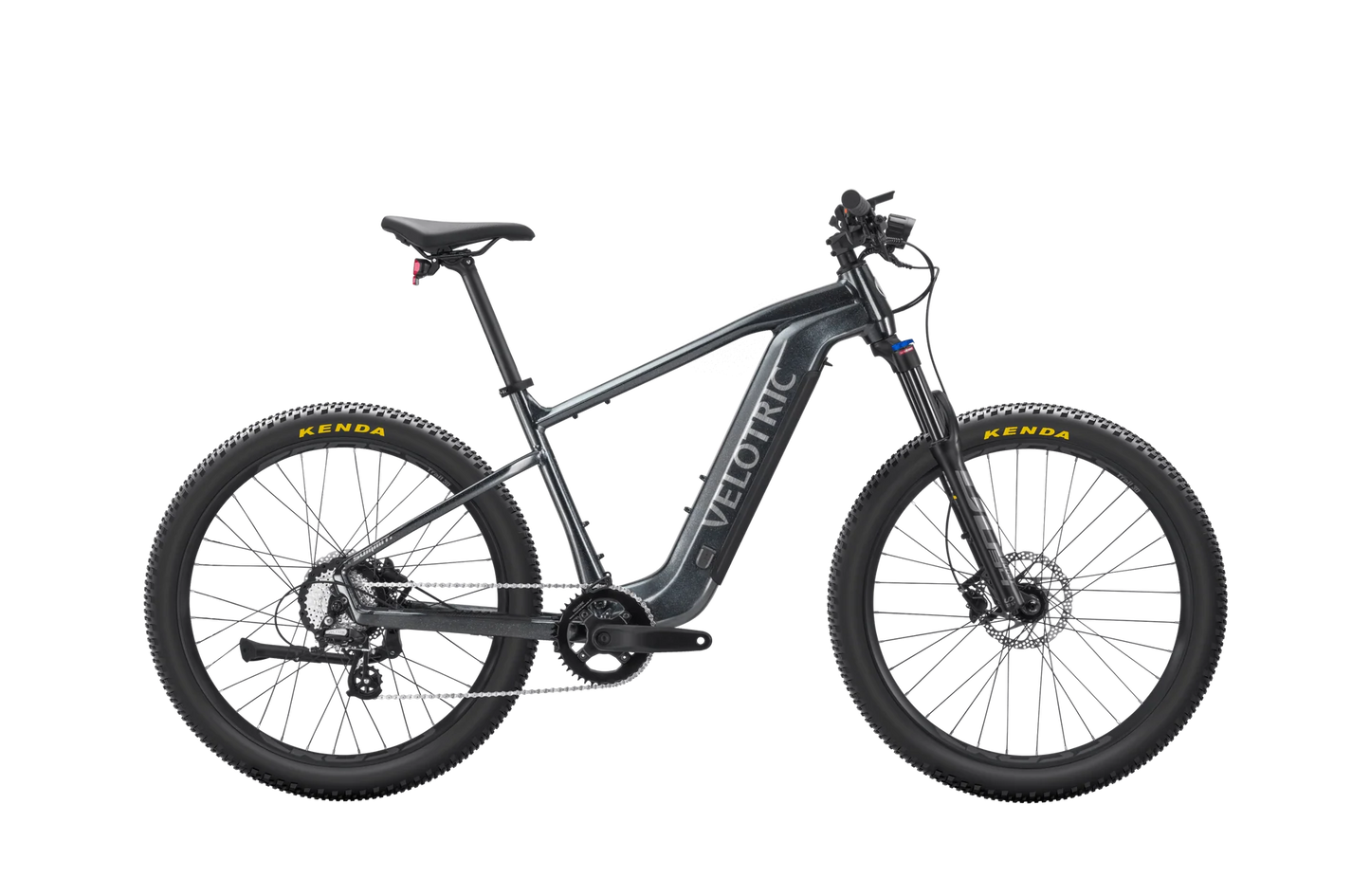

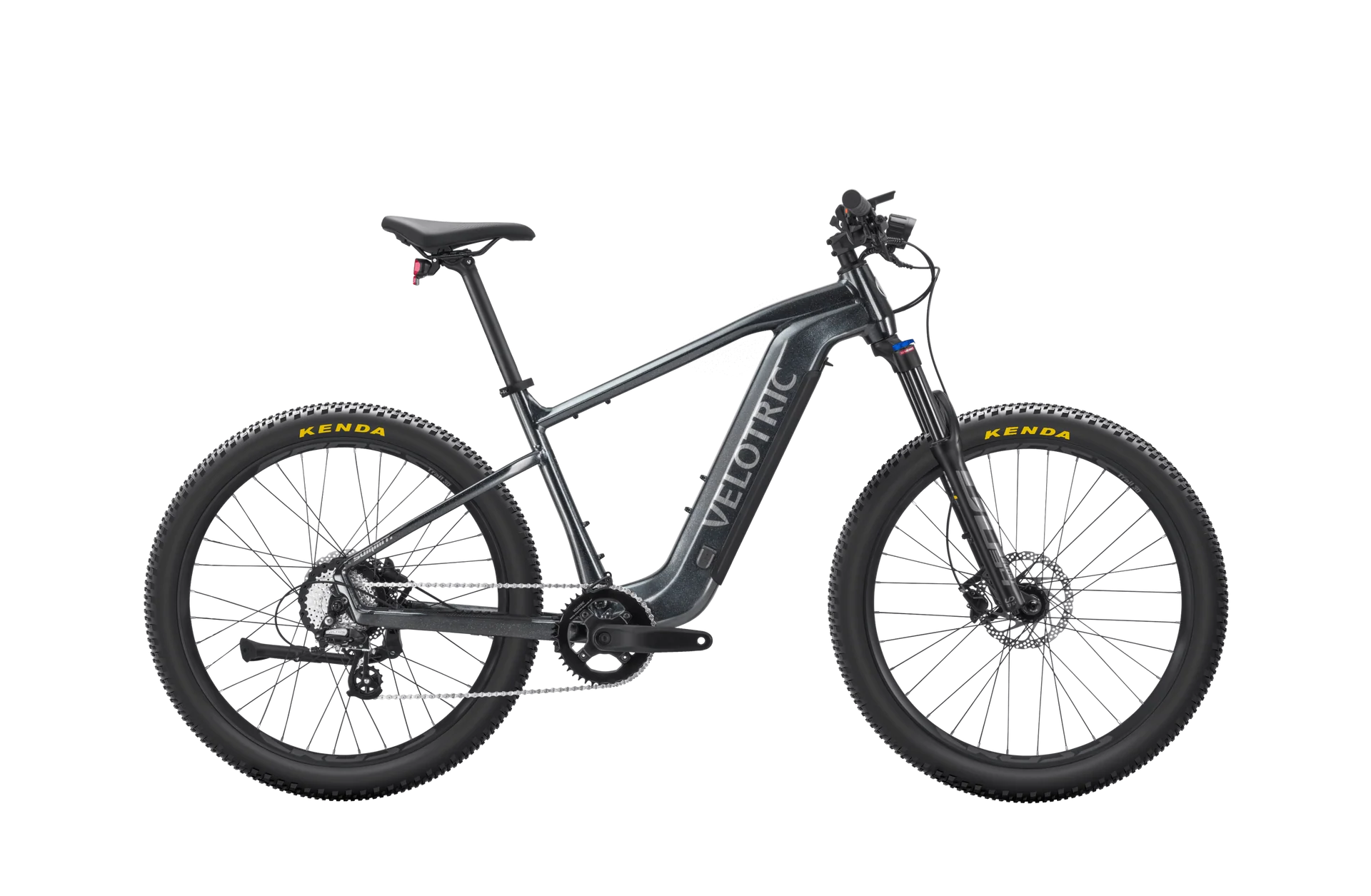

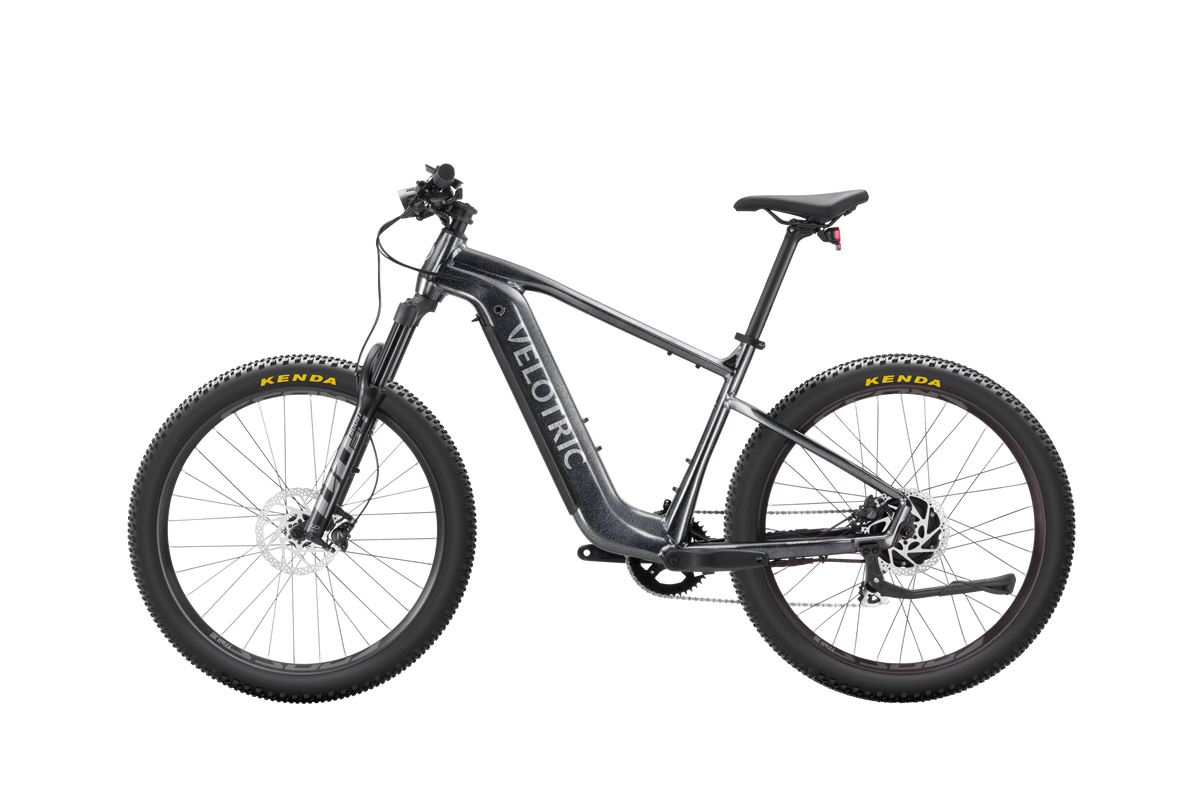

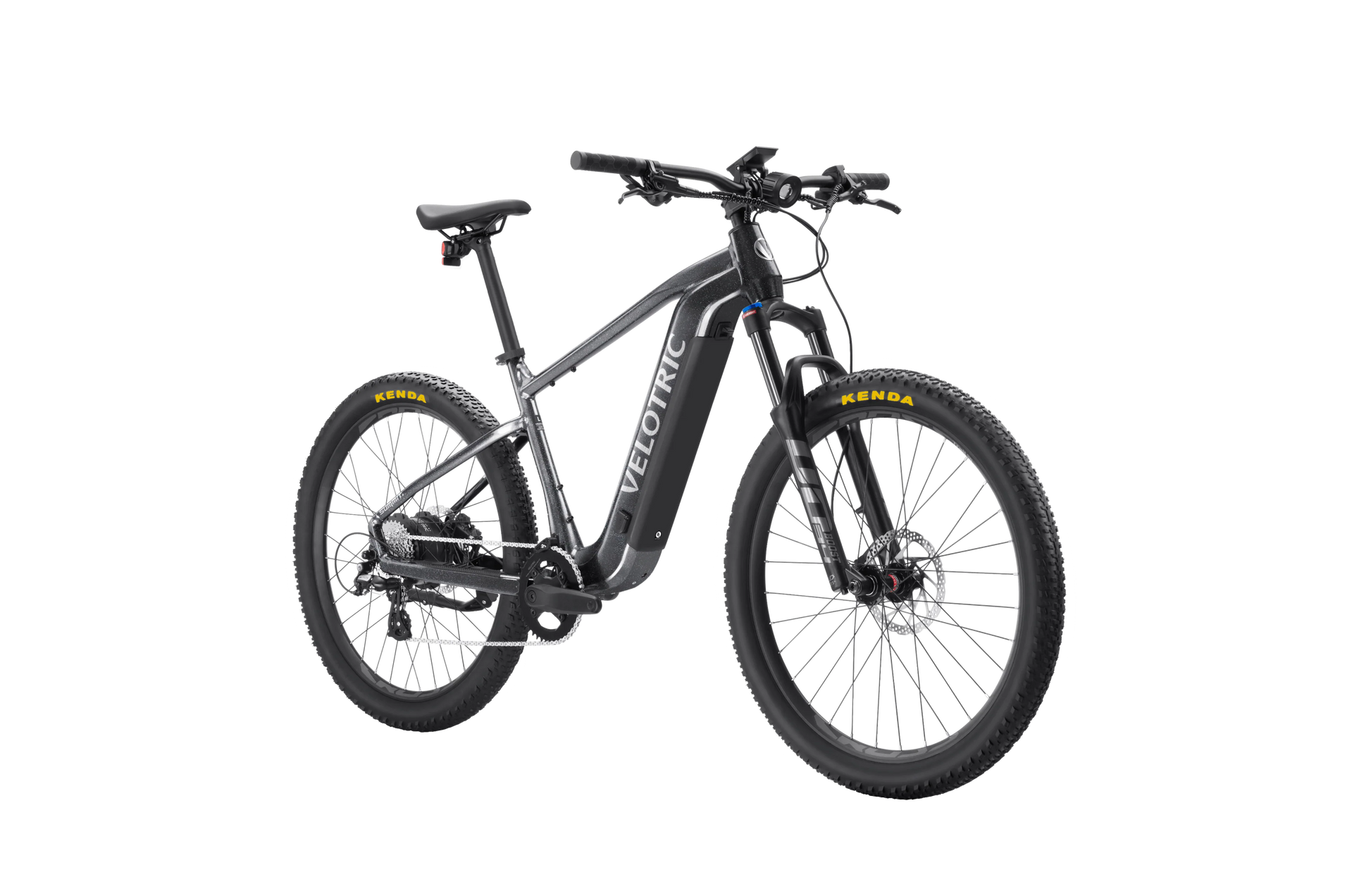

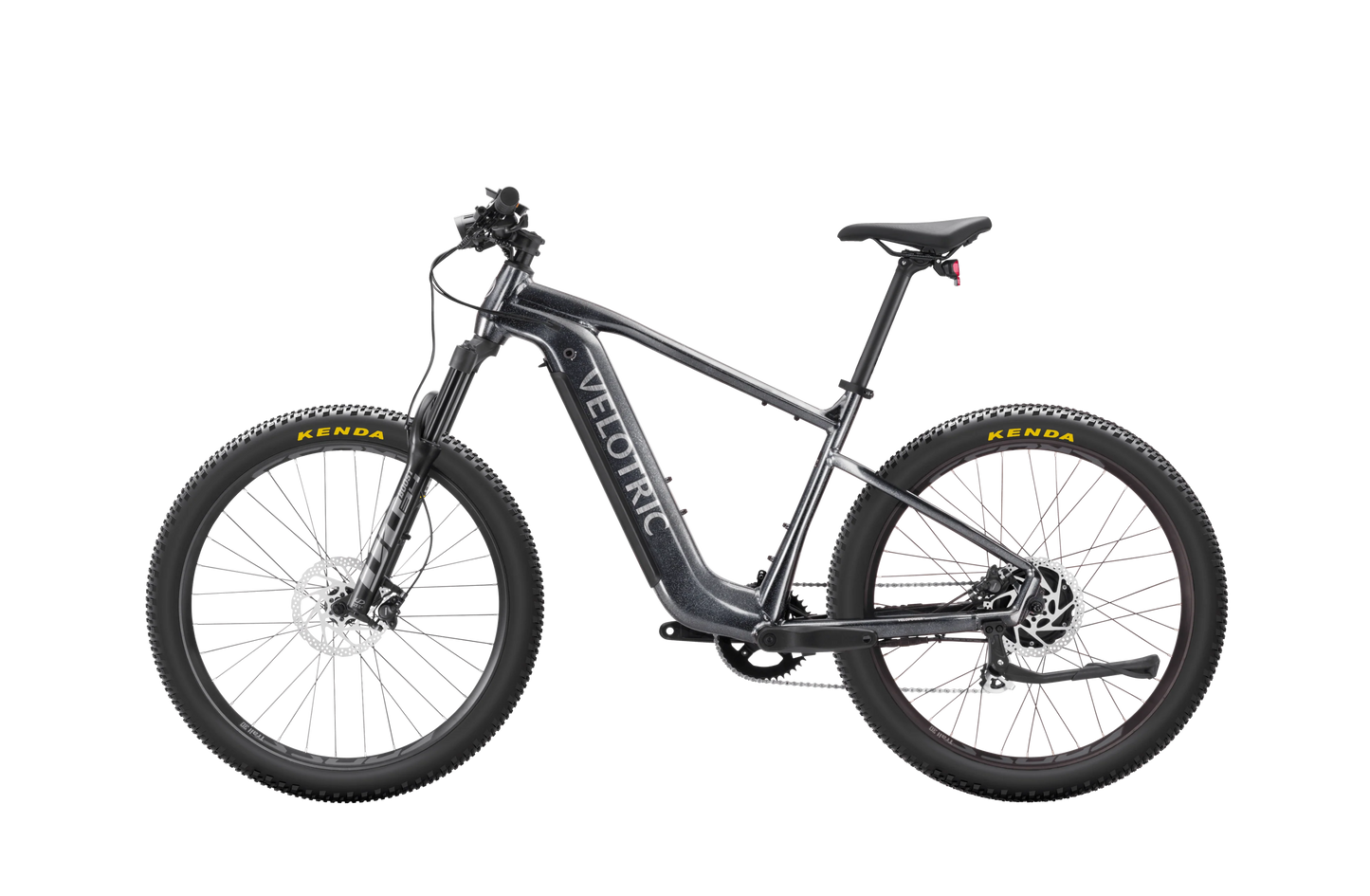

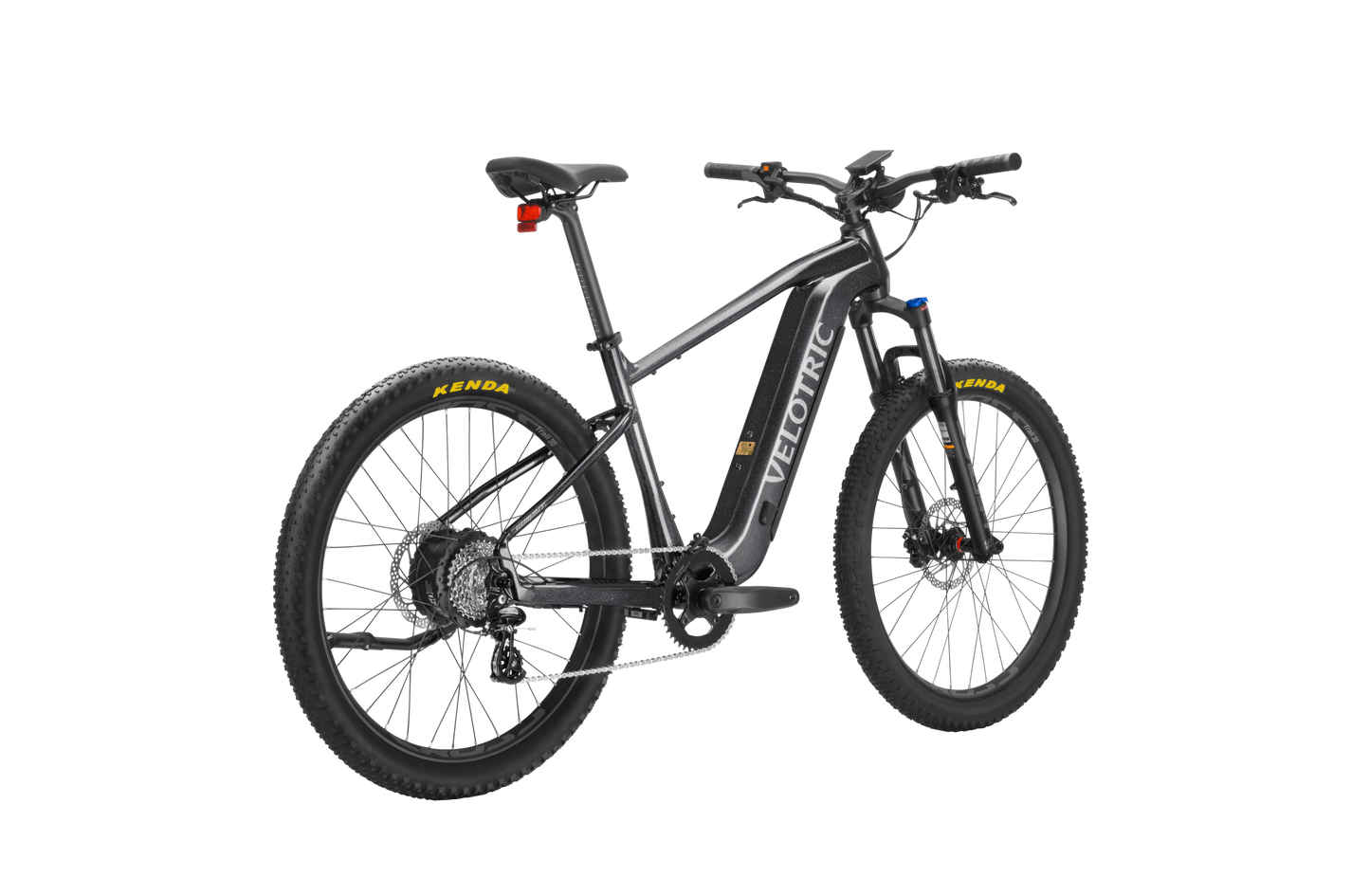

Velotric Summit 1 Ebike

Velotric Summit 1 Ebike

$1,699.00 USD
$1,699.00 USD
Sale Sold out
Shipping calculated at checkout.

Velotric Summit 1 Ebike




General Info

Model Name
Velotric Summit 1
Colors
Royal Blue, Sunrise Orange, Space Black
Frame
Triple-Butted Aluminum Alloy

Size Guide

Bike Size
Regular / Large
User Height Range
Regular: 5'1'' ~ 5'10''
Large: 5'8'' ~ 6'6''

Electronics

Motor Hub
48V, 750W (1300W Peak), 90Nm
Battery
48V, 705.6Wh, IPX7, UL 2271 Certified
Cell
Samsung/LG 21700 cell, UL 2580 Certified
Charger
48V, 3A Fast Charger
Display
2.8" Full color, High brightness, Bluetooth, adjustable angle
SensorSwap™️
Torque Sensor
USB Port
USB Type-A phone charge
Throttle Assist
Trigger-control, removable
Pedal Assist Modes
3 Riding Modes x 5 PAS Levels
Rear Light
Braking Indicator, steady/flash
Front Light
Light sensing 130Lux high-output integrated LED, adjustable angle
Water Resistant
IPX6
App & Apple Find My™
Apple Find My™

Frameset

Frame
Triple-Butted Aluminum Alloy
Fork
Hydraulic suspension 120mm travel with Lock-out, 15x110mm thru-axle

Speed & Range

*A 187-lb rider using PAS 1 in Eco mode on flat roads.

Max Speed (Default)
20 MPH
Max Speed Adjustable Range
12~28 MPH
Class
1/2/3
Throttle Range
60 Miles
Pedal Assist Range
70 Miles

Brake

Brake
SHIMANO Hydraulic Disc Brake
Rotors
180mm front and rear
Brake Levers
Aluminum Alloy, with power cutoff

Weight & Load

Bike Weight
62 lbs
Max Bike Load
440 lbs

Cockpit

Handlebar
Aluminum Alloy, Φ31.8mm, 760mm (R) / 780mm (L)
Grips
Velotric sports grips, lockable
Stem
Aluminum Alloy, Φ31.8mm, 35mm (R) / 50mm (L)
Saddle
VELOTRIC ergonomic seat
Seatpost
Aluminum Alloy, φ30.9mm, 350mm
Clamp
Aluminum Alloy, quick release

Wheel

Rims
Double-wall Aluminum Alloy
Front Hub
NOVATEC Aluminum Alloy, 15x110mm thru-axle
Tire
Kenda 27.5x2.6" MTB puncture resistant tires

Supports

Fenders
Optional
Rear Rack
Optional
Pedals
Aluminum Alloy
Kickstand
Aluminum Alloy, included, rear mount

Certification

UL Certification
UL 2849
ISO Standard
ISO 4210

Drivetrain

Chainrings
BCD 104, 44T, narrow wide chainring
Crankset
Aluminum Alloy, 170mm
Freewheel
8-speed, 11–40T
Chain
KMC 8-speed
Rear Derailleur
SHIMANO 8-speed
Shift Lever
SHIMANO 8-speed
View full details
